The Kembla ECO XS high pressure refrigeration piping system offers a unique combination of Extra Strength Copper and Copper Iron Alloy tube and fittings capable of withstanding the high operating pressure requirements of today’s evolving HVAC and Refrigeration industries, particularly in the use of CO2 transcritical refrigeration systems.
The MM Kembla ECO XS high pressure refrigeration range of tube and fittings delivers a unique solution comprised of only the highest quality products.
Kembla ECO XS in Transcritical Systems
The increasing concern with the environmental impact of hydroflurocarbon (HFC) refrigerants, and emergence of stringent environmental regulations have prompted a re-emergence of carbon dioxide (CO2) based refrigeration systems. CO2 refrigerant is used as a working fluid in many climate control systems such as commercial refrigeration, residential air conditioning, hot water pumps, vending machines etc.
However due to its physical properties, CO2 based refrigeration systems require much higher pressures compared to conventional systems. The higher operating pressure and broad temperature fluctuations require that all the system components, including piping need to be designed and manufactured accordingly. The most common application for CO2 refrigerants is in transcritical refrigeration systems.
Transcritical CO2 refrigeration systems require up to 37% less energy than a state-of-the-art R404A system and as a result provide significant energy efficiency savings when installed. Due to the increased operating pressures of such systems, the Kembla ECO XS system utilises the highest quality manufacturing techniques of copper tube manufacturing and high strength copper alloy materials to produce a piping system optimised for use with transcritical CO2 refrigeration systems.
Kembla XS 60 Bar Copper Tube
Manufactured in Australia, KEMBLA XS combines MM Kembla’s extensive technical knowledge, stringent in house quality controls and over 100 years of experience to develop a high strength copper tube for high pressure refrigeration applications. Manufactured to AS/NZS 1571 and Pressures as per AS 4041, It is ideally suited for applications with operational pressures up to 60 Bar and has been specifically designed to compliment Kembla’s range of 130 Bar Sanha RefHP fittings.
- Air Conditioning
- Commercial Refrigeration Systems
- Industrial Refrigeration Systems
- Any refrigeration system using CO2 / R744 up to 60 Bar pressure
- Available in 6m lengths in sizes 3/8” to 7/8”
- Made from Copper Phosphorous (Alloy C12200)
- Designed to meet safe working pressures of 60 Bar (6,000kPa)
- Utilises MM Kembla’s unique KemCore Technology to provide uniform tube thickness for optimal piping performance under high pressures
- Optimised wall thickness design to ensure system longevity and performance as per AS 4041 pressure piping standard
- Compatible with Kembla ECO XS system fittings (Sanha RefHP fittings)
- Manufactured in Australia
| Material | Phosphorous Deoxidised Copper (Alloy C12200) |
| Dimensional Tolerances | AS/NZS 1571 & AS4041 |
| Internal Cleanliness | AS/NZS 1571 (<0.038g/m2) |
| Mechanical Properties | AS/NZS 1571 |
| Form of Supply | 6 metre straight lengths with external lime green end caps. Hard drawn or Half hard temper (size dependent) |
| Marking | KEMBLA XS AS/NZS 1571 & AS4041 – HH - 12.70 X 0.97 – AUSTRALIA – Batch No. |
25 Years
MM Kembla’s manufacturing processes and quality systems are built upon over 100 years of experience in manufacturing copper tube in Port Kembla, Australia. An intensive ISO 9001 certified quality control system is applied to all MM Kembla BS EN 1057 copper plumbing tube to ensure all MM Kembla seamless copper tube is made from high residual phosphorous deoxidised copper classified as C12200 Alloy and conforms to BS EN 1057 certification requirements.
MM Kembla warrants that if any installation using MM Kembla copper tube becomes defective or fails and MM Kembla is notified of the details and is satisfied that the defect or failure was a result of a manufacturing defect and not the result of faulty specification, installation or incompatible environment, MM Kembla will replace or repair the defective goods and make good the installation.
Kembla XS 60 Bar Copper Tube – Product Table
| Item Code | Outside Diameter (inches) | Outside Diameter (mm) | Wall Thickness (mm) | Weight kg/6m length | Temper | Safe Working Pressure @ 50°C |
|---|---|---|---|---|---|---|
| T62300 | 3/8" | 9.52 | 0.81 | 1.19 | HARD DRAWN | 6,800 |
| T62301 | 1/2" | 12.70 | 0.97 | 1.92 | HALF HARD | 6,053 |
| T62302 | 5/8" | 15.88 | 1.21 | 2.97 | HALF HARD | 6,037 |
| T62303 | 3/4" | 19.05 | 1.45 | 4.30 | HALF HARD | 6,030 |
| T62304 | 7/8" | 22.22 | 1.69 | 5.85 | HARD DRAWN | 6,026 |

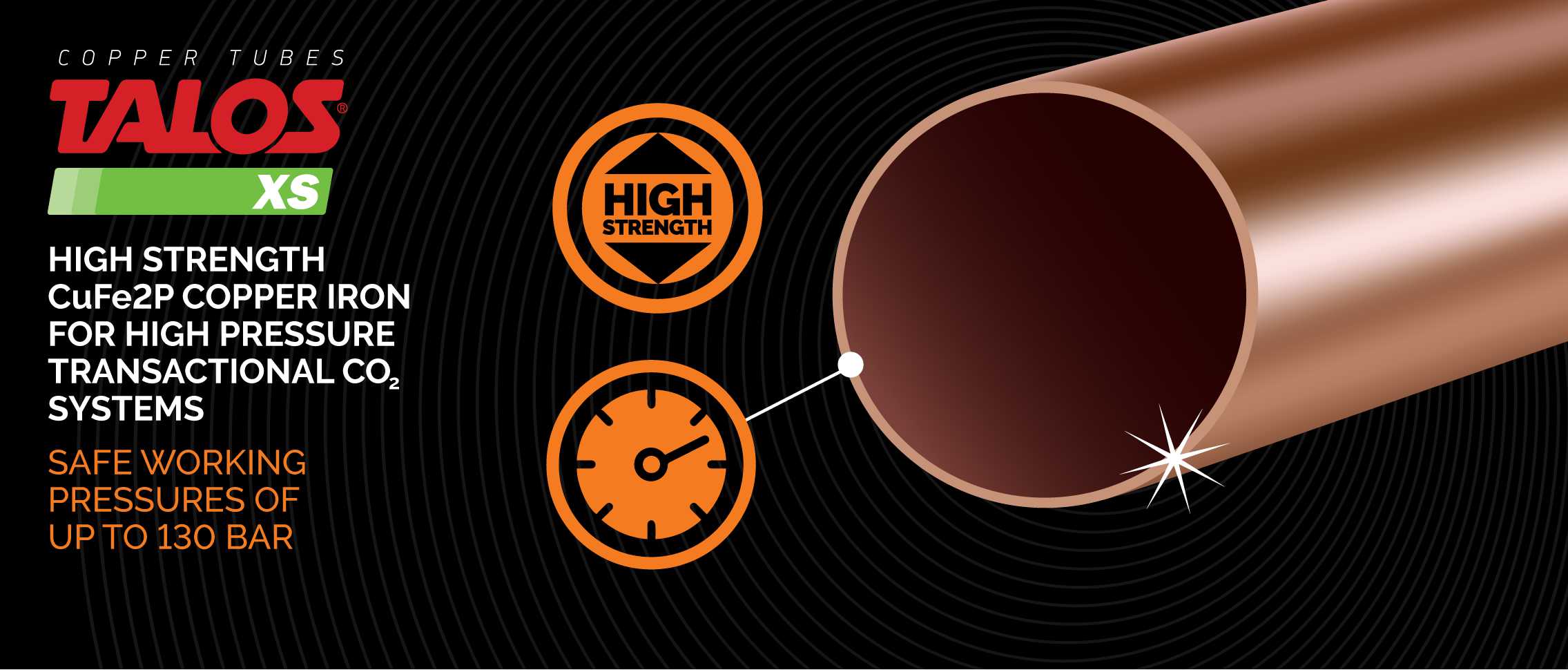

Talos XS 130 Bar Copper Iron Tube
TALOS XS is specially designed and manufactured from extra strong copper iron alloy CuFe2P to satisfy the demand for the high pressures of the ever evolving HVAC-R industry where extra high pressures are required, particularly in CO2 transcritical systems Traditional installation methods ensure joining the system is fast and easy and suitable for use with the Kembla ECO XS range of 130 Bar Sanha RefHP fittings.
- Air Conditioning
- Commercial Refrigeration Systems
- Industrial Refrigeration Systems
- Any refrigeration system using CO2 / R744 up to 130 Bar pressure
- Available in 6m lengths in sizes 3/8” to 1-5/8”
- Made from extra strong copper iron alloy CuFe2P
- Designed to meet safe working pressures of 130Bar (13,000kPa)
- Perfect for use in Transcritical CO2 Refrigeration Systems
- Compatible with Kembla ECO XS system fittings (Sanha RefHP fittings)
- Optimised wall thickness and design to ensure system longevity
- Internal cleanliness of <0.038g/m2
- Manufactured in Greece
| Material | Copper Iron Alloy (Cu Fe2P) with chemical composition according to EN 12449 (CW107C) and UNS C19400 |
| Dimensional Tolerances | EN 12735-1 |
| Internal Cleanliness | EN 12735-1 (<0.038g/m2) |
| Mechanical Properties | EN 12499 |
| Form of Supply | 5 metre straight lengths with internal grey end caps. Hard drawn temper. |
| Marking | HALCOR TALOS-XS 9.52 x 0.65 CuFe2P R300 |
Talos XS 130 Bar Copper Iron Tube – Product Table
| Item Code | Outside Diameter (inches) | Outside Diameter (mm) | Wall Thickness (mm) | Weight kg/5m length | Temper | Safe Working Pressure @ 150°C |
|---|---|---|---|---|---|---|
| T62305 | 3/8" | 9.52 | 0.65 | 0.81 | HARD DRAWN | 13,000 |
| T62306 | 1/2" | 12.70 | 0.85 | 1.41 | HARD DRAWN | 13,000 |
| T62307 | 5/8" | 15.87 | 1.05 | 2.18 | HARD DRAWN | 13,000 |
| T62308 | 3/4" | 19.05 | 1.30 | 3.23 | HARD DRAWN | 13,000 |
| T62309 | 7/8" | 22.23 | 1.50 | 4.35 | HARD DRAWN | 13,000 |
| T62310 | 1-1/8" | 28.57 | 1.90 | 7.09 | HARD DRAWN | 13,000 |
| T62311 | 1-3/8" | 34.92 | 2.30 | 10.49 | HARD DRAWN | 13,000 |
| T62312 | 1-5/8" | 41.27 | 2.70 | 14.56 | HARD DRAWN | 13,000 |

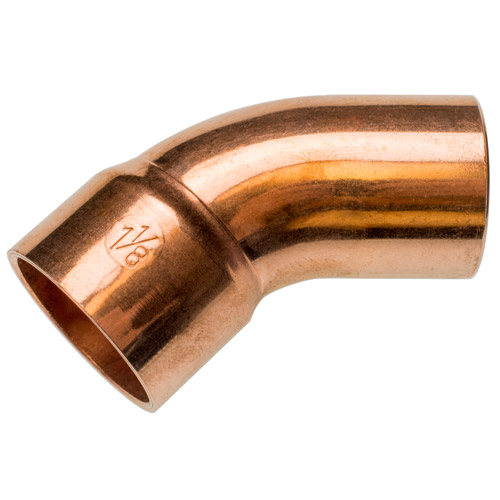

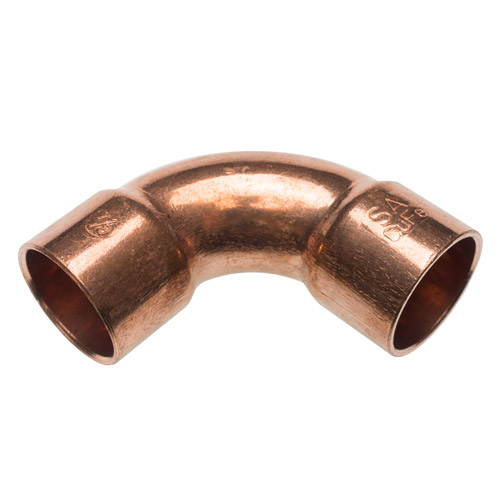

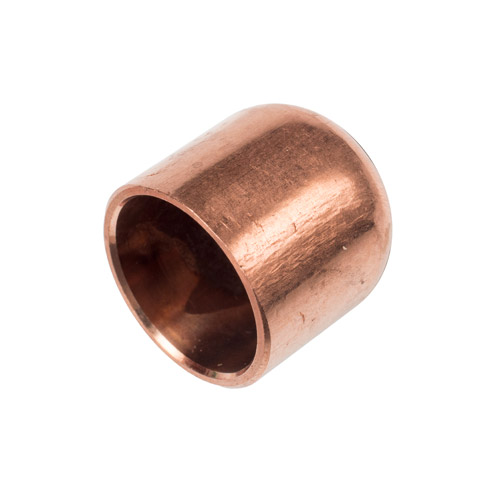

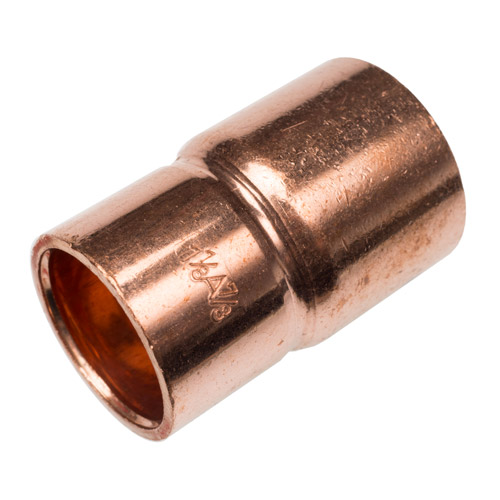

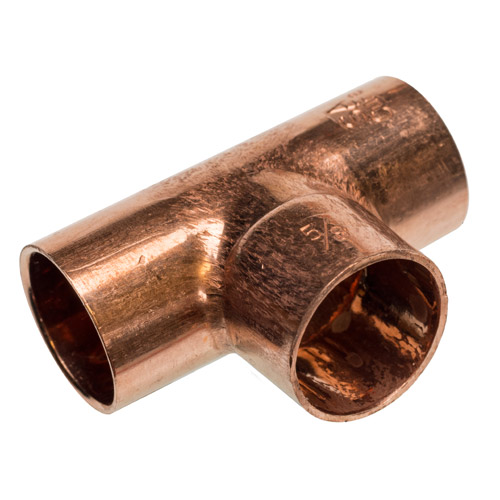

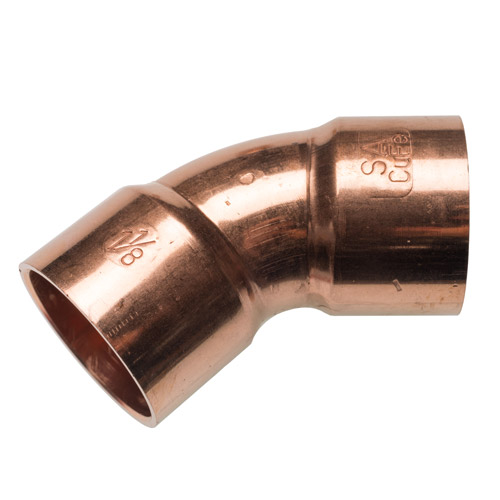

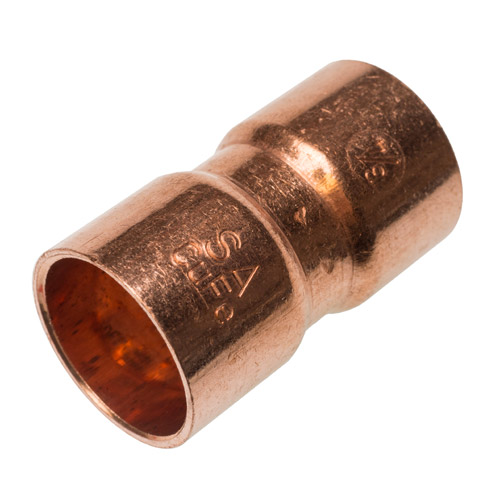

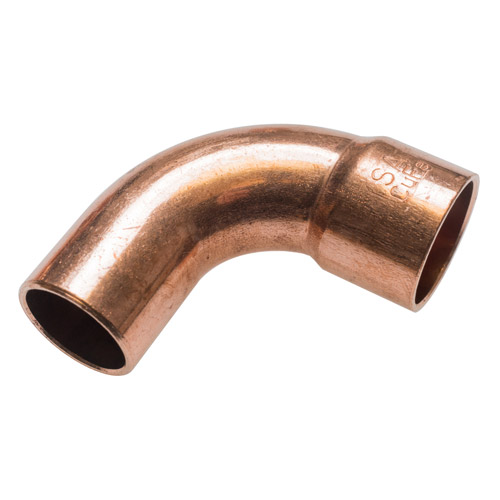

Sanha RefHP 130 Bar Copper Iron Fittings
The higher operating pressures of MM Kembla – ECO XS require higher performing fittings. Sanha RefHP combines German engineering and manufacturing with the ease of installation using proven installation processes. 50 years of experience and internal standards guarantee the fittings are a perfect fit for Kembla XS 60 Bar Copper Tube and Talos XS 130 Bar Copper Iron Tube as part of the Kembla ECO XS high pressure piping system.
- Air Conditioning
- Commercial Refrigeration Systems
- Industrial Refrigeration Systems
- Any refrigeration system using CO2 / R744 up to 130 Bar pressure
- Available in sizes 3/8” to 2-1/8”
- Made from extra strong copper iron alloy CuFe2P
- Designed to meet safe working pressures of 130Bar (13,000kPa) even after brazing
- Stress corrosion resistant
- Suitable for use with Kembla XS 60 Bar and Talos XS 130 Bar Tube
- Manufactured in Germany
| Material | Copper Iron Alloy (Cu Fe2P) with chemical composition according to EN 12449 (CW107C) and UNS C19400 |
| Dimensional Tolerances | EN 1254-1 & 1254-5 |
| Form of Supply | Minimum bag quantity purchase |
| Operating Pressure | 130 Bar (13,000 kPa) |
| Operating Temperature | -196°C to +150°C |
- Fittings to be joined to Kembla XS Copper Tube & Talos XS Copper Iron Tube by silver brazing
- The use of 15% silver solder is recommended and a proprietary silver brazing flux (type FH10) is to be used
- Silver brazing shall be carried out by professional tradepersons using brazing principles and safety procedures in accordance with AS HB40 and relevant installation standards.
25 Years
MM Kembla’s manufacturing processes and quality systems are built upon over 100 years of experience in manufacturing copper tube in Port Kembla, Australia. An intensive ISO 9001 certified quality control system is applied to all MM Kembla NZS 3501 copper plumbing tube to ensure all MM Kembla seamless copper tube is made from high residual phosphorous deoxidised copper classified as C12200 Alloy and conforms to NZS 3501 standard requirements.
MM Kembla warrants that if any installation using MM Kembla copper tube becomes defective or fails and MM Kembla is notified of the details and is satisfied that the defect or failure was a result of a manufacturing defect and not the result of faulty specification, installation or incompatible environment, MM Kembla will replace or repair the defective goods and make good the installation.
Sanha RefHP 130 Bar Copper Iron Fittings – Product Tables
| Item Code | Size (inch) | Bag Quantity |
|---|---|---|
| J62338 | 3/8 | 10 |
| J62339 | 1/2 | 10 |
| J62340 | 5/8 | 10 |
| J62341 | 3/4 | 10 |
| J62342 | 7/8 | 10 |
| J62343 | 1-1/8 | 5 |
| J62344 | 1-3/8 | 2 |
| J62345 | 1-5/8 | 2 |
| Item Code | Size (inch) | Bag Quantity |
|---|---|---|
| J62329 | 3/8 | 10 |
| J62330 | 1/2 | 10 |
| J62331 | 5/8 | 10 |
| J62332 | 3/4 | 10 |
| J62333 | 7/8 | 10 |
| J62334 | 1-1/8 | 5 |
| J62335 | 1-3/8 | 2 |
| J62336 | 1-5/8 | 2 |
| Item Code | Size (inch) | Bag Quantity |
|---|---|---|
| J62356 | 3/8 | 10 |
| J62357 | 1/2 | 10 |
| J62358 | 5/8 | 10 |
| J62359 | 3/4 | 10 |
| J62360 | 7/8 | 10 |
| J62361 | 1-1/8 | 5 |
| J62362 | 1-3/8 | 2 |
| J62363 | 1-5/8 | 2 |
| Item Code | Size (inch) | Bag Quantity |
|---|---|---|
| J62347 | 3/8 | 10 |
| J62348 | 1/2 | 10 |
| J62349 | 5/8 | 10 |
| J62350 | 3/4 | 10 |
| J62351 | 7/8 | 10 |
| J62352 | 1-1/8 | 5 |
| J62353 | 1-3/8 | 2 |
| J62354 | 1-5/8 | 2 |
| Item Code | Size (inch) | Bag Quantity |
|---|---|---|
| J62365 | 3/8 x 3/8 x 3/8 | 10 |
| J62366 | 1/2 x 1/2 x 1/2 | 10 |
| J62367 | 5/8 x 5/8 x 5/8 | 10 |
| J62368 | 3/4 x 3/4 x 3/4 | 10 |
| J62369 | 7/8 x 7/8 x 7/8 | 10 |
| J62370 | 1 1/8 x 1 1/8 x 1 1/8 | 5 |
| J62371 | 1 3/8 x 1 3/8 x 1 3/8 | 2 |
| J62372 | 1 5/8 x 1 5/8 x 1 5/8 | 2 |
| Item Code | Size (inch) | Bag Quantity |
|---|---|---|
| J62374* | 1/2 x 3/8 x 3/8 | 10 |
| J62376* | 1/2 x 1/2 x 3/8 | 10 |
| J62378* | 5/8 x1/2 x 1/2 | 10 |
| J62380* | 5/8 x 5/8 x 3/8 | 10 |
| J62385* | 3/4 x 3/4 x 5/8 | 10 |
| J62392* | 7/8 x 7/8 x 3/4 | 10 |
| J62398* | 1 1/8 x 1 1/8 x 7/8 | 5 |
| J62404* | 1 3/8 x 1 3/8 x 7/8 | 2 |
| J62411* | 1 5/8 x 1 5/8 x 1 3/8 | 2 |
| Item Code | Size (inch) | Bag Quantity |
|---|---|---|
| J62320 | 3/8 | 10 |
| J62321 | 1/2 | 10 |
| J62322 | 5/8 | 10 |
| J62323 | 3/4 | 10 |
| J62324 | 7/8 | 10 |
| J62325* | 1.125 | 5 |
| J62326* | 1.375 | 2 |
| J62327 | 1.625 | 2 |
| Item Code | Size (inch) | Bag Quantity |
|---|---|---|
| J62413 | 1/2-3/8 | 10 |
| J62414 | 5/8-3/8 | 10 |
| J62415 | 5/8-1/2 | 10 |
| J62416 | 3/4-3/8 | 10 |
| J62417 | 3/4-1/2 | 10 |
| J62418 | 3/4-5/8 | 10 |
| J62419 | 7/8-3/8 | 10 |
| J62420 | 7/8-1/2 | 10 |
| J62421 | 7/8-5/8 | 10 |
| J62422 | 7/8-3/4 | 10 |
| J62423 | 1 1/8-5/8 | 5 |
| J62424 | 1 1/8-3/4 | 5 |
| J62425 | 1 1/8-7/8 | 5 |
| J62426 | 1 3/8-1 1/8 | 2 |
| J62427 | 1 5/8-7/8 | 2 |
| J62428 | 1 5/8-1 3/8 | 2 |
| Item Code | Size (inch) | Bag Quantity |
|---|---|---|
| J62460 | 3/8 | 10 |
| J62461 | 1/2 | 10 |
| J62462 | 5/8 | 10 |
| J62463 | 3/4 | 10 |
| J62464 | 7/8 | 10 |
| J62465 | 1-1/8 | 5 |
| J62466 | 1-3/8 | 2 |
| J62467 | 1-5/8 | 2 |
