The MM Kembla brand is renowned for producing the highest quality Kembla Copper Refrigeration products for HVAC and Refrigeration applications used across Australia, New Zealand, Asia and the Middle East.

Introducing Kembla PairCoilTITAN, the highest quality pre-insulated copper coil for domestic split system air conditioning with the toughest exterior. Built tough for Aussie conditions, Aussie homes and Aussie tradies in mind.

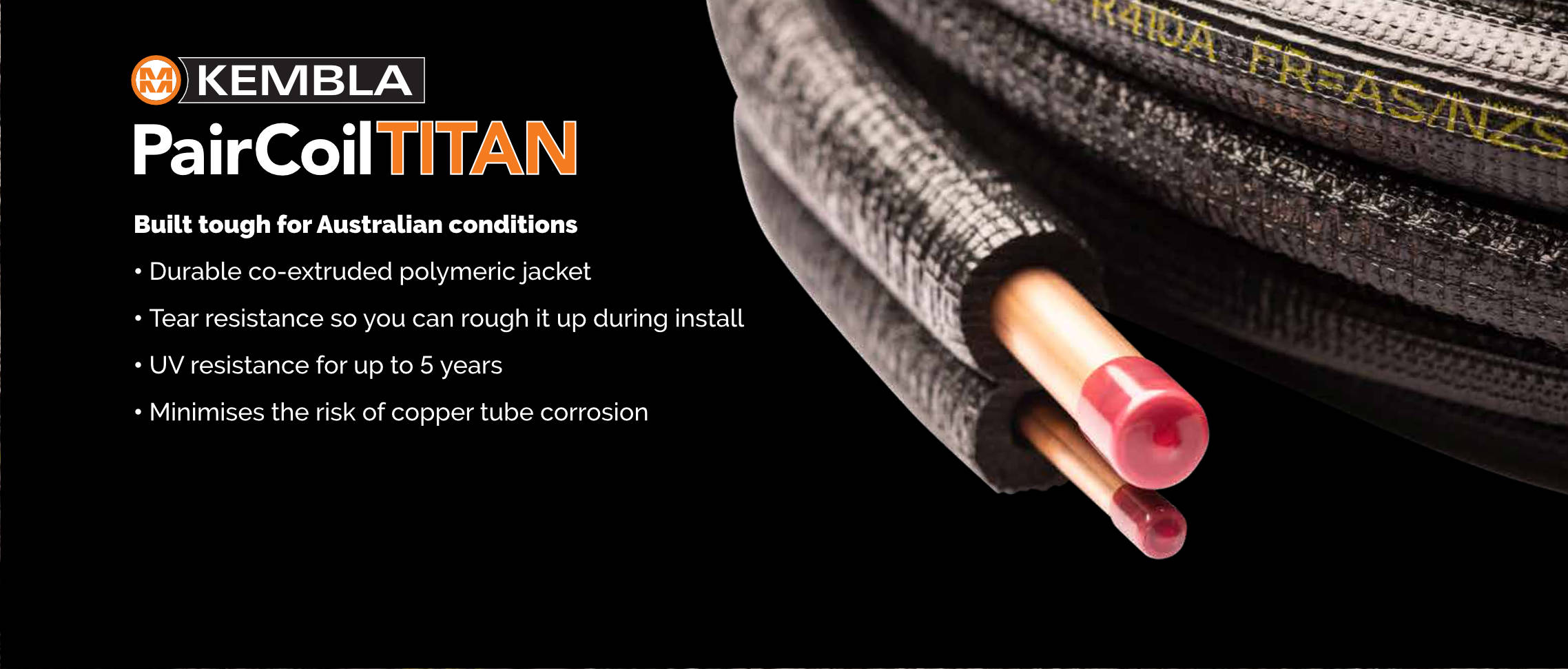

Kembla PairCoilTITAN

Out with the old and unreliable and in with the new and TOUGH. Built for Aussie Conditions, Aussie homes and Aussies tradies in mind. Kembla PairCoilTITAN is the new highest quality solution for pre-insulated tear resistant fire-retardant Pair Coil for use with domestic air conditioners.

Built for Aussie homes under the challenges of Aussie conditions, PairCoilTITAN is UV-rated for 5 years and minimises opportunity for corrosion. Designed with a tough skin that is tear resistant, PairCoilTITAN is built tough so you can rough it up during installation.

PairCoilTITAN provides you with a tougher and easy to install pre-insulated piping solution for air conditioning installations. Available in 9mm wall thickness meets the fire performance testing requirements of AS/NZS 1530.3 and provides greater energy efficiency.

  • Domestic split system air conditioners
  • Condensation prevention
  • Closed Cell NBR Insulation with tear resistant co-extruded polymeric jacket
  • UV rated for 5 years
  • Copper tube manufactured to AS/NZS 1571
  • High water vapour resistance
  • Fire Rating: AS/NZS 1530.3
  • Tube Standard: AS 1571
  • Pre-insulated
  • Insulation: 9mm
  • Length: 20m
  • Tough skin that is tear resistant
  • Easy to install
  • Reduces condensation and energy loss
  • Enhanced protection against tube corrosion
  • Fire retardant
  • Greater energy efficiency
  • Built tough for Aussie conditions, Aussie homes and Aussie tradies in mind
Recommended maximum operating temperature is 65°C and in accordance with AS 1677. A/C manufacturer’s operating and installation instructions should be consulted.
Kembla PairCoilTITAN copper tube is recommended to be flare jointed. If brazing is necessary, all safety precautions should apply.
If tight bending is required, the insulation can be cut back to accommodate a tube bender. Alternatively, a length of polyethylene tube can be inserted to prevent kinking.

25 Years on copper tube

MM Kembla’s manufacturing processes and quality systems are built upon over 100 years of experience in manufacturing copper tube in Port Kembla, Australia. An intensive ISO 9001 certified quality control system is applied to all MM Kembla PairCoilTITAN to ensure it conforms to the relevant local/international product standard requirements.

MM Kembla warrants that if any installation using MM Kembla PairCoilTITAN becomes defective or fails and MM Kembla is notified of the details and is satisfied that the defect or failure was a result of a manufacturing defect and not the result of faulty specification, installation or incompatible environment, MM Kembla will replace or repair the defective goods and make good the installation.

Kembla PairCoilTITAN – Product Table

Kembla product codeCopper tube outside diameter
x wall thickness (mm)Copper tube outside diameter
R-Values
Paircoil length (m)
T995196.35 X 0.81 / 9.52 X 0.819mmFire Retardant 20
T995296.35 X 0.81 / 12.70 X 0.819mmFire Retardant 20
T995396.35 X 0.81 / 15.88 X 1.029mmFire Retardant 20
T995599.52 X 0.81 / 15.88 X 1.029mmFire Retardant 20
T995699.52 X 0.81 / 19.05 X 1.149mmFire Retardant 20
