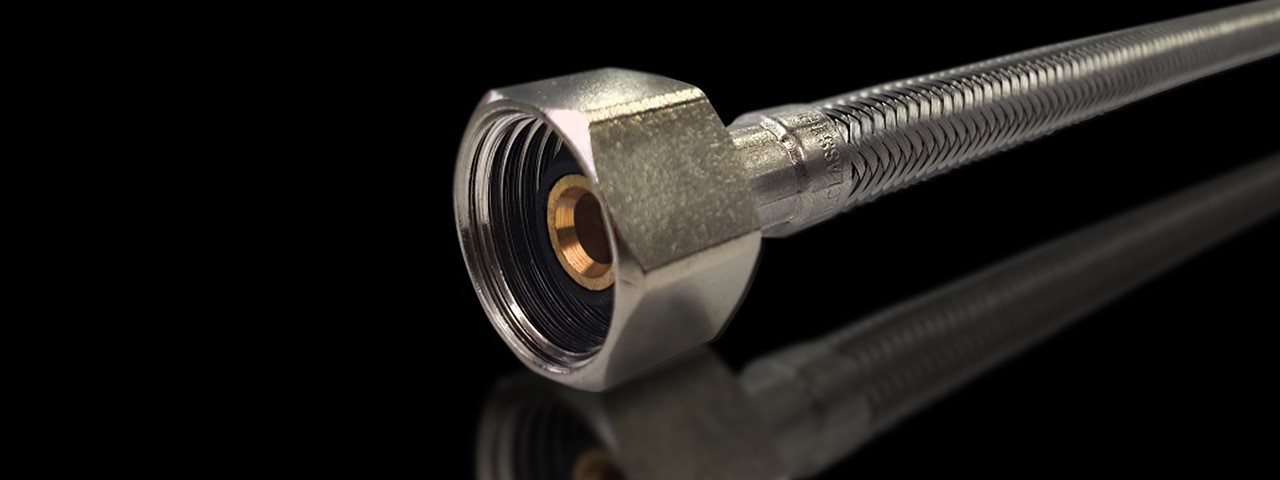

MM Kembla doesn’t just specialise in back of wall products – we also provide the highest quality front of wall products to the plumbing industry. The MM Kembla range of Flexible Stainless Steel Braided PEX Hoses is the high quality and reliable choice for connecting to high quality plumbing fixtures.

MM Kembla Flexible Hoses are suitable for hot and cold water applications and internal and external use. Manufactured using high quality materials, our flexible hoses are backed by Kembla’s trusted 15 year warranty and Watermark Certified and compliant with AS/NZS 3499.

Kembla Flexible Hoses are manufactured using long lasting cross linked polyethylene (PEX) inner tube, strong silicone rubber cone seals and 304 Stainless steel outer braid. Suitable for use in hot and cold water applications and for internal and external use, our flexible hoses can handle a maximum safe working pressure of 1400 kPa and operating temperatures of 5°C to 90°C.

Kembla Flexible Hoses are supported by a 15 year warranty and certified compliant to AS/NZS 3499 and Watermark certified (WM-032138).

  • For Hot & Cold water applications
  • Female Hex Nut connection points (1/2″)
  • High strength long lasting silicon seal
  • 304 Stainless Steel braid and ferrule
  • Cross linked polyethylene (PEX) inner tube
  • CW617N Brass Alloy Nut
  • Max. safe working pressure 1400 kPa
  • Certified compliant to product standard AS/NZS 3499 and Watermark Certified (WM-032138)
  • Tighten hex nuts to 5 Nm torque
  • For use in exposed locations only. Not suitable behind walls, ceilings or underground
  • Minimum bend radius of 30mm
  • Do not over tighten
  • Do not stretch, twist, kink or expose to naked flames or corrosive agents
  • Do not install directly to water heating systems
  • It is recommended flexible hoses are connection to an isolation valve
  • Inspect hose for any leaks after installation
  • To be installed by a licensed plumber
  • Max. safe working pressure of 1400 kPa
  • Suitable for operating temperatures between 5°C to 90°C
  • Ensure that all threads are clean and free of any dirt or debris
  • The male connection to the hose nut shall have a parallel thread and chamfer internally to accept the cone washer
  • Sealants are not required with these fittings

15 Years

MM Kembla guarantees that  Kembla Flexible Braided Hoses will be fit for their intended purpose for a period of not less than 10 15 years. MM Kembla warrants that if any installation using this products becomes defective or fails and MM Kembla is notified of the details and is satisfied that the defect or failure was a result of a manufacturing defect and not the result of; faulty specification, installation, improper use or incompatible environment; MM Kembla will replace or repair the defective goods and make good the installation.

KEMBLA FLEXIBLE HOSES – PRODUCT TABLE

Item CodeDescriptionConnection Size (inches)Length (mm)Inside Diameter (mm)
G08274KEMBLA SS PEX FLEXIBLE HOSE 150MM1/2"1508
G08275KEMBLA SS PEX FLEXIBLE HOSE 225MM1/2"2258
G08276KEMBLA SS PEX FLEXIBLE HOSE 300MM1/2"3008
G08277KEMBLA SS PEX FLEXIBLE HOSE 450MM1/2"4508
G08278KEMBLA SS PEX FLEXIBLE HOSE 600MM1/2"6008
G08279KEMBLA SS PEX FLEXIBLE HOSE 1000MM1/2"10008
G08280KEMBLA SS PEX FLEXIBLE HOSE 1500MM1/2"15008

Item CodeDescriptionConnection Size (inches)Length (mm)Inside Diameter (mm)
G08281KEMBLA SS PEX FLEXIBLE HOSE ELBOW 300MM1/2"3008
G08282KEMBLA SS PEX FLEXIBLE HOSE ELBOW 450MM1/2"4508
G08283KEMBLA SS PEX FLEXIBLE HOSE ELBOW 600MM1/2"6008
