Kembla Copper Plumbing Tube

• Plumbing
• Gas Fittings
• Drainage

• Backed by MM Kembla’s reputation for quality, reliability and service for over 100 years
• Watermark Certified (Licence no. WMKA0945)
• 25 Year Manufacturers Warranty
• Manufactured to AS1432 and strict MM Kembla internal quality standards and specifications
• Stocked nationwide for prompt delivery
• Superior internal carbon cleanliness providing improved corrosion resistance

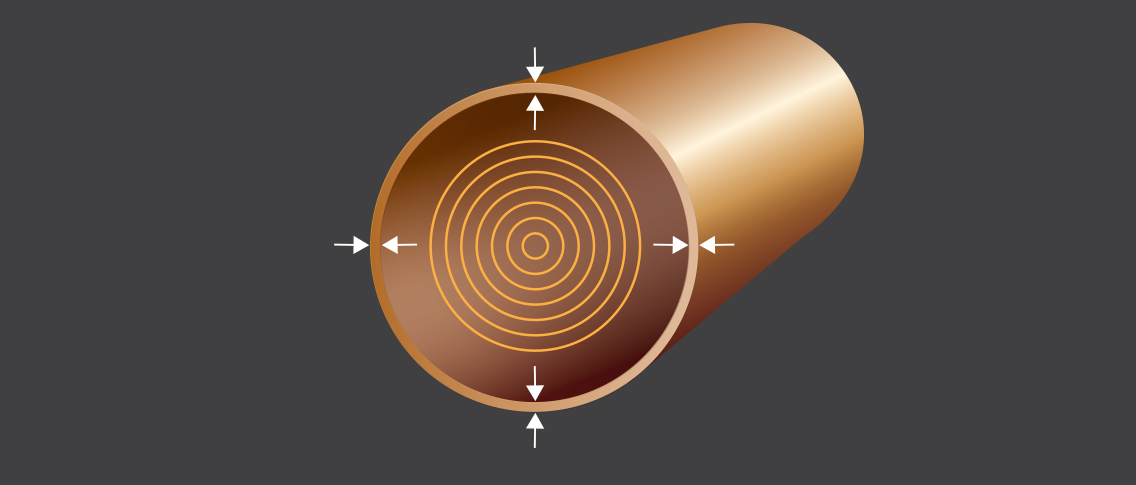

• Manufactured using KemCore technology – superior concentricity, uniform wall thickness and optimised for use with press fittings
• Ability to handle high working pressures and extreme high and low temperatures (max service temperature of 200°C)
• Superior flow rates due to low surface roughness
• Minimal linear expansion and space requirements
• Less bracketing/supports required than other piping systems
• Excellent thermal conductivity – perfect energy efficient exchange of hot or cold fluids
• Hygienic – fights and inhibits the proliferation of harmful bacteria and pathogens, ensuring high quality drinking water
• Contains no additives, volatile organic compounds (VOC’s) or pigments and synthetic compounds
• Strong & Reliable – provides protection to external damage, punctures, corrosion and system failure and is resistant to vermin attack
• 10 times stronger than plastic pipe materials
• UV resistant – suitable to be used in direct sunlight
• Fire Resistant – Does not burn or support combustion, spread flame or emit toxic fumes during fire

• Seamless Phosphorous Deoxidised Copper Tube, made of 99.90% Copper (Alloy C12200)
• Available in sizes 6.35mm up to and including 254mm.
• Available as ‘Hard Drawn’ straight lengths, (BQ) ‘Bendable Quality’ straight lengths or, annealed coils and annealed layer wound packs.
• ‘Kemlag’ Pre-insulated copper tube is available with a green plastic sheathing. Used in a variety of end use applications e.g. short run domestic hot water lines, burying in corrosive soils, laying under floors and concrete slabs (where approved), chasing into walls and masonry, pipework exposed to aggressive environments.
• Lagged copper tubes for recycled water are available with a lilac coloured lagging. Used for the purpose of differentiating between drinking water pipes and those used for recycled water.
• ‘Kemline’ biscuit coloured pre-insulated tube is used as LP gas pipelines for vehicle engines and satisfies the requirements of AS 1425.
• Plain copper 3m Handy coils available in sizes 1/2″and 3/4″.
• MM Kembla copper tube can be cut to size. Lengths available from 1.5m (min order quantities apply).
• How do you know you are using Kembla copper tube? Look for MM Kembla on the tubes inkmark or contact us and reference the 7 digit production code on the tube.

25 Years

MM Kembla’s manufacturing processes and quality systems are built upon over 100 years of experience in manufacturing copper tube in Port Kembla, Australia. An intensive ISO 9001 certified quality control system is applied to all MM Kembla AS 1432 copper plumbing tube to ensure all MM Kembla seamless copper tube is made from high residual phosphorous deoxidised copper classified as C12200 Alloy and conforms to AS1432 and Australian Watermark certification requirements.
MM Kembla warrants that if any installation using MM Kembla copper tube becomes defective or fails and MM Kembla is notified of the details and is satisfied that the defect or failure was a result of a manufacturing defect and not the result of faulty specification, installation or incompatible environment, MM Kembla will replace or repair the defective goods and make good the installation.

Item Code	Nom. Size	Actual Tube Size (Metric)	Actual Tube Size (Imperial)	kg per 6m length	Pack Qty.	*Safe Working Pressure (kPa)
T10472	DN6	6.35 x 0.91	1/4” x 20g	0.83	200	11,320
T89630	DN15	•12.70 x 1.02	1/2” x 19g	2.01	100	6,100
T79928	DN18	•15.88 x 1.22	5/8” x 18g	3.00	100	5,750
T67512	DN20	•19.05 x 1.42	3/4” x 17g	4.22	100	5,560
T79847	DN25	25.40 x 1.63	1” x 16g	6.53	100	4,750
T79812	DN32	31.75 x 1.63	1 1/4” x 16g	8.28	50	3,750
T79782	DN40	38.10 x 1.63	1 1/2” x 16g	10.03	50	3,100
T79715	DN50	50.80 x 1.63	2” x 16g	13.52	30	2,310
T89958	DN65	63.50 x 1.63	2 1/2” x 16g	17.01	30	1,840
T89931	DN80	76.20 x 2.03	3” x 14g	25.39	20	1,900
T89851	DN100	101.60 x 2.03	4” x 14g	34.09	10	1,500
T19151	DN125	127.00 x 2.03	5” x 14g	42.79	8	1,200
T19542	DN150	152.40 x 2.64	6” x 12g	66.68	7	1,300
T20078	DN200	203.20 x 2.64	8” x 12g	89.27	1	910

	Item Code	Nom. Size	Actual Tube Size (Metric)	Actual Tube Size (Imperial)	kg per 6m length	Pack Qty.	*Safe Working Pressure (kPa)
	T79987	DN10	9.52 x 0.91	3/8” x 20g	1.32	200	7,220
	T89621	DN15	•12.70 x 0.91	1/2” x 20g	1.81	100	5,290
	T58769	DN18	•15.88 x 1.02	5/8” x 19g	2.56	100	4,810
	T83356	DN20	•19.05 x 1.02	3/4” x 19g	3.10	100	3,970
	T79839	DN25	25.40 x 1.22	1” x 18g	4.97	100	3,500
	T79804	DN32	31.75 x 1.22	1 1/4” x 18g	6.28	50	2,780
	T79774	DN40	38.10 x 1.22	1 1/2” x 18g	7.59	50	2,300
	T79707	DN50	50.80 x 1.22	2” x 18g	10.20	30	1,710
	T89940	DN65	63.50 x 1.22	2 1/2” x 18g	12.82	30	1,370
	T89923	DN80	76.20 x 1.63	3” x 16g	20.50	20	1,520
	T89842	DN100	101.60 x 1.63	4” x 16g	27.49	10	1,200
	T19208	DN125	127.00 x 1.63	5” x 16g	34.46	8	960
	T19607	DN150	152.40 x 2.03	6” x 14g	51.49	7	1,000
	T20094	DN200	203.20 x 2.03	8” x 14g	68.85	1	720

Item Code	Nom. Size	Actual Tube Size (Metric)	Actual Tube Size (Imperial)	kg per 6m length	Pack Qty.	*Safe Working Pressure (kPa)
T79031	DN10	9.52 x 0.71	3/8” x 22g	1.06	200	5,520
T89460	DN15	•12.70 x 0.71	1/2” x 22g	1.43	100	4,070
T22438	DN18	•15.88 x 0.91	5/8” x 20g	2.30	100	4,180
T81434	DN20	•19.05 x 0.91	3/4” x 20g	2.78	100	3,450
T79456	DN25	25.40 x 0.91	1” x 20g	3.76	100	2,560

Item Code	Nom. Size	Actual Tube Size (Metric)	Actual Tube Size (Imperial)	kg per 6m length	Pack Qty.	*Safe Working Pressure (kPa)
T89672	DN32	31.75 x 0.91	1 1/4” x 20g	4.73	50	2,040
T79766	DN40	38.10 x 0.91	1 1/2” x 20g	5.71	50	1,690
T79693	DN50	50.80 x 0.91	2” x 20g	7.66	30	1,260
T89761	DN65	63.50 x 0.91	2 1/2” x 20g	9.61	30	1,010
T89915	DN80	76.20 x 1.22	3” x 18g	15.43	20	1,130
T89834	DN100	101.60 x 1.22	4” x 18g	20.65	10	890
T19658	DN150	152.40 x 1.63	6” x 16g	41.45	7	800

Item Code	Actual Tube Size (Metric)	Actual Tube Size (Imperial)	Length	Pack Qty.
T79880	19.05 x 1.22	3/4” x 18g	6m	100
T74964	19.05 x 1.63	3/4” x 16g	6m	100
T89745	101.60 x 0.91	4” x 20g	6m	10
T19691	152.40 x 0.91	6” x 20g	6m	5
T20418	254.00 x 2.64	10” x 12g	6m	1

Item Code	Actual Tube Size (Metric)	Actual Tube Size (Imperial)	Length	Pack Qty.
TYPE A
T70459	•12.70 x 1.02	1/2” x 19g	6m	25
T10642	•19.05 x 1.42	3/4” x 17g	6m	25
TYPE B
T70475	•12.70 x 0.91	1/2” x 20g	6m	25
T70531	•15.88 x 1.02	5/8” x 19g	6m	25
T70581	•19.05 x 1.02	3/4” x 19g	6m	25
T70696	25.40 x 1.22	1” x 18g	6m	25
T58556	31.75 x 1.22	1 1/4” x 18g	6m	150
T20991	38.10 x 1.22	1 1/2” x 18g	6m	100
T63312	50.80 x 1.22	2” x 18g	6m	75
T09938	101.60 x 1.63	4” x 16g	6m	15
TYPE C
T70572	•15.88 x 0.91	5/8” x 20g	6m	25
T70688	•19.05 x 0.91	3/4” x 20g	6m	25
T70718	25.40 x 0.91	1” x 20g	6m	25

Item Code	Actual Tube Size (Metric)	Actual Tube Size (Imperial)	Length	Pack Qty.
T12467	12.70 x 0.91	1/2” x 20g	6m	25
T12408	19.05 x 1.02	3/4” x 19g	6m	25
T12425	25.40 x 1.22	1” x 18g	6m	25
T78336	31.75 x 1.22	1 1/4” x 18g	6m	150
T58785	38.10 x 1.22	1 1/2” x 18g	6m	100
T15900	50.80 x 1.22	2” x 18g	6m	75
T15905	63.50 x 1.22	2 1/2” x 18g	6m	60
T15910	76.20 x 1.63	3” x 16g	6m	40
T90093	101.60 x 1.63	4” x16g	6m	15

Item Code	Actual Tube Size (Metric)	Actual Tube Size (Imperial)	Length	Pack Qty.
TYPE A
T32328	6.35 x 0.91	1/4” x 20g	30m	5
T89770	7.94 x 0.91	5/16” x 20g	30m	5
T79651	12.70 x 1.02	1/2” x 19g	18m	4
T79618	19.05 x 1.42	3/4” x 17g	18m	2
T79570	25.40 x 1.63	1” x 16g	18m	1
TYPE B
T79677	9.52 x 0.91	3/8” x 20g	18m	6
T79642	12.70 x 0.91	1/2” x 20g	18m	4
T79626	15.88 x 1.02	5/8” x 19g	18m	3
T79596	19.05 x 1.02	3/4” x 19g	18m	3
T79561	25.40 x 1.22	1” x 18g	18m	2
TYPE C
T79049	15.88 x 0.91	5/8” x 20g	18m	3
T79588	19.05 x 0.91	3/4” x 20g	18m	3

Item Code	Actual Tube Size (Metric)	Actual Tube Size (Imperial)	Length	Pack Qty.
TYPE A
T44466	12.70 x 1.02	1/2” x 19g	18m	1
TYPE B
T47171	12.70 x 0.91	1/2” x 20g	18m	1
T70271	15.88 x 1.02	5/8” x 19g	18m	1
T70327	19.05 x 1.02	3/4” x 19g	18m	1
TYPE C
T70301	19.05 x 0.91	3/4” x 20g	18m	1

Item Code	Actual Tube Size (Metric)	Actual Tube Size (Imperial)	Length	Pack Qty.
T68631	6.35 x 0.91	1/4" x 20g	18m	1
T24447	7.94 x 0.91	5/16" x 20g	30m	1
T90548	9.52 x 0.91	3/8" x 20g	18m	1

The below are recommended maximum design velocities for AS1432 copper tube, consideration should be given to variable flows and peak operating periods during design to not exceed maximum velocities for extended periods.

Piping	Maximum Velocity
Circulatory (flow)	1.2 m/s
Non-circulatory (flow)	3.0m/s
Circulatory return line	1.0m/s

1. Circulator means piping where there is forced circulation of heated water
2. Circulatory piping does note include:
   1. Systems where the circulatory flow only occurs in response to activation by a user; and
   2. Primary circulation in a solar water heater

• Plumbing
• Gas Fittings
• Drainage & Sanitation
• Central Heating
• General Engineering

• Backed by MM Kembla’s reputation for quality, reliability and service for over 100 years
• Independently certified to BS EN 1057 – Standards Mark Licence SMKP21391, BSI Certificate BMP 644675
• 25 Year Manufacturers Warranty
• Manufactured to BS EN 1057 and strict MM Kembla internal quality standards and specifications
• Superior internal carbon cleanliness providing improved corrosion resistance
• Manufactured using KemCore technology – superior concentricity, uniform wall thickness and optimised for use with press fittings
• Ability to handle high working pressures and extreme high and low temperatures (max service temperature of 200°C)
• Superior flow rates due to low surface roughness
• Minimal linear expansion and space requirements
• Less bracketing/supports required than other piping systems
• Excellent thermal conductivity – perfect energy efficient exchange of hot or cold fluids
• Hygienic – fights and inhibits the proliferation of harmful bacteria and pathogens, ensuring high quality drinking water
• Contains no additives, volatile organic compounds (VOC’s) or pigments and synthetic compounds
• Strong & Reliable – provides protection to external damage, punctures, corrosion and system failure and is resistant to vermin attack
• 10 times stronger than plastic pipe materials
• UV resistant – suitable to be used in direct sunlight
• Fire Resistant – Does not burn or support combustion, spread flame or emit toxic fumes during fire

• Seamless Phosphorous Deoxidised Copper Tube, made of 99.90% Copper (Alloy C12200)
• Available in sizes 15mm up to and including 267mm.
• Available as ‘Hard Drawn’ straight lengths and (HH) ‘Half Hard’ straight lengths.
• 5.8m lengths for easy containerisation and stock available at our Port Kembla, Australia warehouse
• Kemlag Plus® and Kemline Plus® pre-insulated polyethylene covered copper tubes are suitable for a variety of applications including burying in corrosive soils, laying under floors and concrete slabs (where approved), chasing into walls, exposed or aggressive environments and for reducing noise transmission. The covering is all Low Smoke Halogen Free (LSHF) and is suitable for continuous operating temperatures up to 90°C
• How do you know you are using Kembla copper tube? Look for MM Kembla on the tubes inkmark or contact us and reference the 7 digit production code on the tube.

25 Years

MM Kembla’s manufacturing processes and quality systems are built upon over 100 years of experience in manufacturing copper tube in Port Kembla, Australia. An intensive ISO 9001 certified quality control system is applied to all MM Kembla BS EN 1057 copper plumbing tube to ensure all MM Kembla seamless copper tube is made from high residual phosphorous deoxidised copper classified as C12200 Alloy and conforms to BS EN 1057 certification requirements.

MM Kembla warrants that if any installation using MM Kembla copper tube becomes defective or fails and MM Kembla is notified of the details and is satisfied that the defect or failure was a result of a manufacturing defect and not the result of faulty specification, installation or incompatible environment, MM Kembla will replace or repair the defective goods and make good the installation.

Kembla BS EN 1057 copper tubes manufactured to Table X are available as half hard and hard drawn temper and sizes 15mm to 267mm outside diameter in 5.8m straight lengths.

Item Code	Nominal Outside Diameter (mm)	Nominal Wall Thickness (mm)	kg per 5.8m length **	Pack Qty.	*Safe Working Pressure - Annealed (kPa)	*Safe Working Pressure - As Supplied (kPa)
T20942	15 #	0.7	1.63	200	4500	5870 #
T14274	22 #	0.9	3.09	100	3920	5120 #
T14312	28 #	0.9	3.98	50	3060	3990 #
T14215	35	1.2	6.61	50	3270	5150
T63593	42	1.2	7.98	50	2710	4270
T21972	54	1.2	10.33	30	2090	3300
T82474	66.7	1.2	12.81	25	1690	2660
T62228	76.1	1.5	18.24	20	1850	2920
T17265	108	1.5	26.04	10	1300	2040
T84302	133	1.5	32.15	10	1050	1650
T82432	159	2.0	51.18	5	1170	1850
T20105	219	3.0	105.61	1	1280	2010
T20415	267	3.0	129.08	1	1050	1650

* Based on annealed temper at 65°C
** Based on nominal diameter and thickness
# Manufactured in half hard temper, all other sizes are hard drawn

Kembla BS EN 1057 copper tubes manufactured to Table Y contain thicker walls than the Table X option and are available as half hard and hard drawn temper and sizes 15mm to 267mm outside diameter in 5.8m straight lengths.

Item Code	Nominal Outside Diameter (mm)	Nominal Wall Thickness (mm)	kg per 5.8m length **	Pack Qty.	*Safe Working Pressure - Annealed (kPa)	*Safe Working Pressure - As Supplied (kPa)
T14150	15 #	1.0	2.28	200	6570	8570 #
T76640	22 #	1.2	4.07	100	5310	6920 #
T91224	28 #	1.2	5.24	50	4120	5370 #
T19372	35	1.5	8.19	50	4120	6490
T19364	42	1.5	9.90	50	3410	5370
T54150##	54	1.5	12.83	25	2629	4143
T31861	54	2.0	16.95	25	3540	5580
T52931	66.7	2.0	21.09	25	2840	4480
T65641	76.1	2.0	24.15	20	2480	3910
T23043	108	2.5	42.99	10	2180	3440
T14567	133	2.0	42.70	10	1410	2210
T14335	159	3.0	76.27	5	1770	2790

* Based on annealed temper at 65°C
** Based on nominal diameter and thickness
# Manufactured in half hard temper, all other sizes are hard drawn
## Developed and suitable for use with 54mm EN1254 KemPress Fittings and marked as “EN1057 KEMPRESS”

Kembla Kemlag Plus BS EN 1057 copper tubes are pre-insulated polyethylene covered copper tubes manufactured to both Table X and Table Y sizes in half hard and hard drawn temper. Low Smoke Halogen Free (LSHF) and suitable for continuous operating temperatures up to 90°C. Kemlag Plus® insulation is internally grooved to entrap air and provide a thermal barrier and is suitable for both hot and cold water plumbing and is useful in preventing condensation.

Item Code	Nominal Outside Diameter (mm)	Nominal Wall Thickness (mm)	kg per 5.8m length **	Master Bundle Qty	*Safe Working Pressure - Annealed (kPa)	*Safe Working Pressure - As Supplied (kPa)
Table X
T84212	15 #	0.7	1.63	500	4500	5870 #
T20192	22 #	0.9	3.09	300	3920	5120 #
T19488	28 #	0.9	3.98	200	3060	3990 #
T26271	35	1.2	6.61	100	3270	5150
T63657	42	1.2	7.98	100	2710	4270
T58271	54	1.2	10.33	50	2090	3300
Table Y
T70025	15 #	1.0	2.28	200	6570	8570 #
T21741	22 #	1.2	4.07	100	5310	6920 #
T56146	28 #	1.2	5.24	50	4120	5370 #
T26204	35	1.5	8.19	50	4120	6490
T86606	42	1.5	9.90	50	3410	5370
T69035	54	2.0	16.95	25	3540	5580

* Based on annealed temper at 65°C
** Based on nominal diameter and thickness
# Manufactured in half hard temper, all other sizes are hard drawn

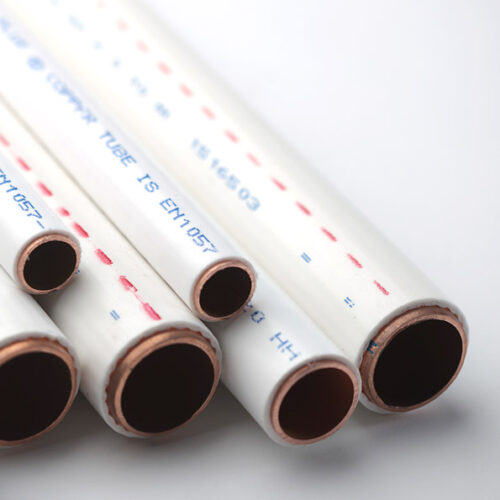

Kembla Kemline Plus BS EN 1057 copper tubes are pre-insulated polyethylene covered copper tubes manufactured to both Table X and Table Y sizes in half hard and hard drawn temper. Kemline PLus® is suitable for cold water applications and may be concealed or exposed to aggressive environments and is also suitable for gas line installations.

Item Code	Nominal Outside Diameter (mm)	Nominal Wall Thickness (mm)	kg per 5.8m length **	Master Bundle Qty	*Safe Working Pressure - Annealed (kPa)	*Safe Working Pressure - As Supplied (kPa)
Table X
T84212	15 #	0.7	1.63	500	4500	5870 #
T20192	22 #	0.9	3.09	300	3920	5120 #
T19488	28 #	0.9	3.98	200	3060	3990 #
T26271	35	1.2	6.61	100	3270	5150
T63657	42	1.2	7.98	100	2710	4270
T58271	54	1.2	10.33	50	2090	3300
T23957	66.7	1.2	12.81	50	1690	2660
T21962	76.1	1.5	18.24	50	1850	2920
T55450	108	1.5	26.04	30	1300	2040
Table Y
T70025	15 #	1.0	2.28	500	6570	8570 #
T21741	22 #	1.2	4.07	300	5310	6920 #
T56146	28 #	1.2	5.24	200	4120	5370 #
T26204	35	1.5	8.19	100	4120	6490
T86606	42	1.5	9.90	100	3410	5370
T69035	54	2.0	16.95	50	3540	5580
T17566	66.7	2.0	21.09	50	2840	4480
N/A	76.1	2.0	24.15	50	2480	3910
T23045	108	2.5	42.99	30	2180	3440

* Based on annealed temper at 65°C
** Based on nominal diameter and thickness
# Manufactured in half hard temper, all other sizes are hard drawn

• Plumbing
• Gas Fittings
• Drainage & Sanitation
• Central Heating
• General Engineering

• Backed by MM Kembla’s reputation for quality, reliability and service for over 100 years
• Independently certified ASTM B88 – Standards Mark Licence SMKP21866
• 25 Year Manufacturer’s Warranty
• Manufactured to ASTM B88 and strict MM Kembla internal quality standards and specifications
• Ability to handle high working pressures and extreme high and low temperatures (max service temperature of 200°C)
• Superior flow rates due to low surface roughness
• Minimal linear expansion and space requirements
• Less bracketing/supports required than other piping systems
• Excellent thermal conductivity – perfect energy efficient exchange of hot or cold fluids
• Hygienic – fights and inhibits the proliferation of harmful bacteria and pathogens, ensuring high quality drinking water
• Contains no additives, volatile organic compounds (VOC’s) or pigments and synthetic compounds
• Strong & Reliable – provides protection to external damage, punctures, corrosion and system failure and is resistant to vermin attack
• 10 times stronger than plastic pipe materials
• UV resistant – suitable to be used in direct sunlight
• Fire Resistant – Does not burn or support combustion, spread flame or emit toxic fumes during fire

• Seamless Phosphorous Deoxidised Copper Tube, made of 99.90% Copper (Alloy C12200)
• Available in sizes ¼” up to 10”
• Available as ‘Hard Drawn’ straight lengths
• 5.8m lengths for easy containerisation and stock available at our Port Kembla, Australia warehouse
• Kemlag Plus® and Kemline Plus® pre-insulated polyethylene covered copper tubes are suitable for a variety of applications including burying in corrosive soils, laying under floors and concrete slabs (where approved), chasing into walls, exposed or aggressive environments and for reducing noise transmission. The covering is all Low Smoke Halogen Free (LSHF) and is suitable for continuous operating temperatures up to 90°C
• How do you know you are using Kembla copper tube? Look for MM Kembla on the tubes inkmark or contact us and reference the 7 digit production code on the tube.

25 Years

MM Kembla’s manufacturing processes and quality systems are built upon over 100 years of experience in manufacturing copper tube in Port Kembla, Australia. An intensive ISO 9001 certified quality control system is applied to all MM Kembla ASTM B88 copper plumbing tube to ensure all MM Kembla seamless copper tube is made from high residual phosphorous deoxidised copper classified as C12200 Alloy and conforms to ASTM B88 certification requirements.

MM Kembla warrants that if any installation using MM Kembla copper tube becomes defective or fails and MM Kembla is notified of the details and is satisfied that the defect or failure was a result of a manufacturing defect and not the result of faulty specification, installation or incompatible environment, MM Kembla will replace or repair the defective goods and make good the installation.

Kembla ASTM B88 copper tubes manufactured to Type K are available in a hard drawn temper and sizes ¼” to 8″ in 5.8m lengths and contain the greatest wall thickness of the ASTM B88 range for the highest safe working pressures.

Item Code	Nominal Outside Diameter (inch)	Actual Outside Diameter (inch)	Actual Wall Thickness (inch)	Actual Outside Diameter (mm)	Actual Wall Thickness (mm)	kg per 5.8m length	Safe Working Pressure (kPa) *	Pack Qty
T17908	1/4"	3/8"	0.035	9.52	0.89	1.25	7,390	100
T17823	3/8"	1/2"	0.049	12.7	1.24	2.32	7,760	100
T17827	1/2"	5/8"	0.049	15.88	1.24	2.96	6,120	100
T55780	5/8"	3/4"	0.049	19.05	1.24	3.60	5,050	100
T17700	3/4"	7/8"	0.065	22.22	1.65	5.53	5,850	100
T17331	1"	1-1/8"	0.065	28.58	1.65	7.24	4,490	50
T70166	1-1/4"	1-3/8"	0.065	34.92	1.65	8.95	3,640	50
T17487	1-1/2"	1-5/8"	0.072	41.28	1.83	11.77	3,390	30
T61380	2"	2-1/8"	0.083	53.98	2.11	17.84	2,980	30
T76334	2-1/2"	2-5/8"	0.095	66.68	2.41	25.24	2,730	25
T80332	3"	3-1/8"	0.109	79.38	2.77	34.59	2,640	20
T53709	4"	4-1/8"	0.134	104.78	3.40	56.18	2,460	10
T26396	5"	5-1/8"	0.160	130.18	4.06	83.45	2,360	5
T61050	6"	6-1/8"	0.192	155.58	4.88	119.86	2,370	5
T20440	8"	8-1/8"	0.271	206.38	6.88	223.70	2,520	1

*Safe Working Pressures are based on annealed temper for temperatures up to 50°C

Slightly thinner in wall thickness than Type K, Kembla ASTM B88 copper tubes manufactured to Type L are available in a hard drawn temper and sizes ¼” to 10” in 5.8m lengths.

Item Code	Nominal Outside Diameter (inch)	Actual Outside Diameter (inch)	Actual Wall Thickness (inch)	Actual Outside Diameter (mm)	Actual Wall Thickness (mm)	kg per 5.8m length	Safe Working Pressure (kPa) *	Pack Qty
T86976	1/4"	3/8"	0.030	9.52	0.76	1.09	6,250	100
T86985	3/8"	1/2"	0.035	12.7	0.89	1.71	5,360	100
T75345	1/2"	5/8"	0.040	15.88	1.02	2.47	4,970	100
T24459	5/8"	3/4"	0.042	19.05	1.07	3.14	4,350	100
T62963	3/4"	7/8"	0.045	22.22	1.14	3.92	3,980	100
T62980	1"	1-1/8"	0.050	28.58	1.27	5.65	3,390	50
T76017	1-1/4"	1-3/8"	0.055	34.92	1.40	7.65	3,020	50
T25501	1-1/2"	1-5/8"	0.060	41.28	1.52	9.85	2,790	30
T25705	2"	2-1/8"	0.070	53.98	1.78	15.14	2,490	30
T24945	2-1/2"	2-5/8"	0.080	66.68	2.03	21.39	2,300	25
T17949	3"	3-1/8"	0.090	79.38	2.29	28.77	2,170	20
T31314	4"	4-1/8"	0.110	104.78	2.79	46.38	2,000	10
T23281	5"	5-1/8"	0.125	130.18	3.18	65.82	1,840	5
T23337	6"	6-1/8"	0.140	155.58	3.56	88.20	1,720	5
T20430	8"	8-1/8"	0.200	206.38	5.08	166.66	1,840	1
T20434	10"	10-1/8"	0.250	257.18	6.35	259.59	1,860	1

*Safe Working Pressures are based on annealed temper for temperatures up to 50°C

The thinnest and most economical, Kembla ASTM B88 copper tubes manufactured to Type M are available in a hard drawn temper and sizes ¼” to 6” in 5.8m lengths.

KEMBLA® ASTM B88 COPPER TUBE (TYPE M)

Item Code	Nominal Outside Diameter (inch)	Actual Outside Diameter (inch)	Actual Wall Thickness (inch)	Actual Outside Diameter (mm)	Actual Wall Thickness (mm)	kg per 5.8m length	Safe Working Pressure (kPa) *	Pack Qty
T84380	1/4"	3/8"	0.025	9.52	0.64	0.93	5,340	100
T12191	3/8"	1/2"	0.025	12.7	0.64	1.26	3,920	100
T75780	1/2"	5/8"	0.028	15.88	0.71	1.76	3,390	100
T23729	5/8"	3/4"	0.030	19.05	0.76	2.27	3,030	100
T72252	3/4"	7/8"	0.032	22.22	0.81	2.83	2,790	100
T23780	1"	1-1/8"	0.035	28.58	0.89	4.02	2,310	50
T61825	1-1/4"	1-3/8"	0.042	34.92	1.07	5.90	2,320	50
T26787	1-1/2"	1-5/8"	0.049	41.28	1.24	8.09	2,270	30
T73629	2"	2-1/8"	0.058	53.98	1.47	12.58	2,050	30
T76562	2-1/2"	2-5/8"	0.065	66.68	1.65	17.49	1,880	25
T83412	3"	3-1/8"	0.072	79.38	1.83	23.13	1,730	20
T24182	4"	4-1/8"	0.095	104.78	2.41	40.21	1,720	10
T15438	6"	6-1/8"	0.122	155.58	3.10	77.04	1,490	5

*Safe Working Pressures are based on annealed temper for temperatures up to 50°C
