Kemdrain™ stainless industrial floor drains and linear channels offer all the benefits of 316L Stainless Steel for the strongest, hygienic and durable industrial drainage in Australia.

MM Kembla have been providing cost-effective and dependable plumbing and drainage solutions since 1916. This experience and knowledge has been combined with European engineering to produce KemDrain™ Stainless Drainage solutions.

KemDrain™ Stainless offers you peace of mind and the simplicity that you want.

Kembla provides full project design support to assist with product selection, project specific written warranties and installation training, as well as warehousing and after sales support locations across Australia as part of Kembla’s renowned customer service offering.

KemDrain 316L
Stainless Floor Drains

KemDrain 316L
Stainless Linear Drainage Channels

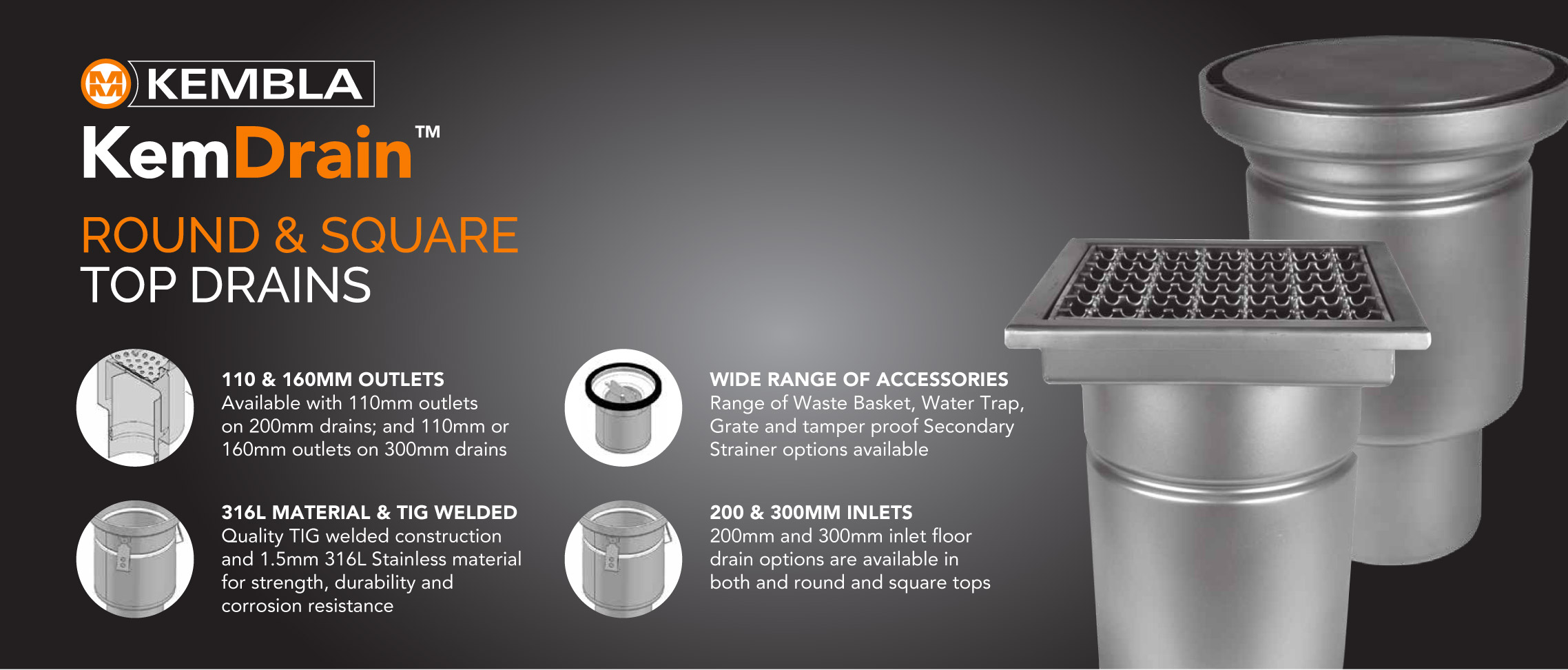

KemDrain 316L Stainless Floor Drain

KemDrain 316L Stainless Steel Floor Drains are manufactured from the highest quality material and have been designed to be hygienic and hydraulically efficient as well as being fast and easy to install. KemDrain floor drains are in 200mm and 300mm round or square top designs and a wide range of accessories including grates, waste baskets, traps, secondary strainers and 110 or 160mm outlet options. If it’s high strength, durable and industrial quality floor drains you are after, KemDrain provides you with simplest and highest quality solution stocked at MM Kembla for immediate delivery nationwide.

  • Food and beverage processing
  • Abattoirs
  • Laboratories
  • Wineries
  • Breweries
  • Plant rooms
  • Clean rooms
  • Laundrettes
  • Hospitals
  • Commercial kitchens
  • Watermark certified (Watermark No. 23231)
  • Manufactured using high quality 316L grade stainless steel
  • Low carbon content of 316L stainless steel eliminates carbide precipitation at welds during manufacture, improving corrosion resistance
  • Increased molybdenum contact increases corrosion resistance
  • All KemDrain Stainless products are thoroughly cleaned, pickled and passivated to ensure optimum corrosion resistance
  • Fast and easy installation
  • Hygienic design features
  • Hydraulically efficient
  • Manufactured from 1.5mm 316L material for strength and durability
  • Quality TIG welded construction
  • 200mm and 300mm inlets with square and round tops 110mm and 160mm outlets
  • Provisions for fixing of optional tamper proof secondary strain screens in outlets
  • Epoxy filled edges are standard on square top drains and solid stainless steel edges are standard on round top drains, ensuring easier installation and improved durability
  • Range of grates to suit various traffic conditions and loads, in including anti-slip surfaces
  • Optional low profile or deep, high capacity strainer baskets
  • Full 75mm seal depth, Watermark compliant, removable water trap options, with easy clean functionality

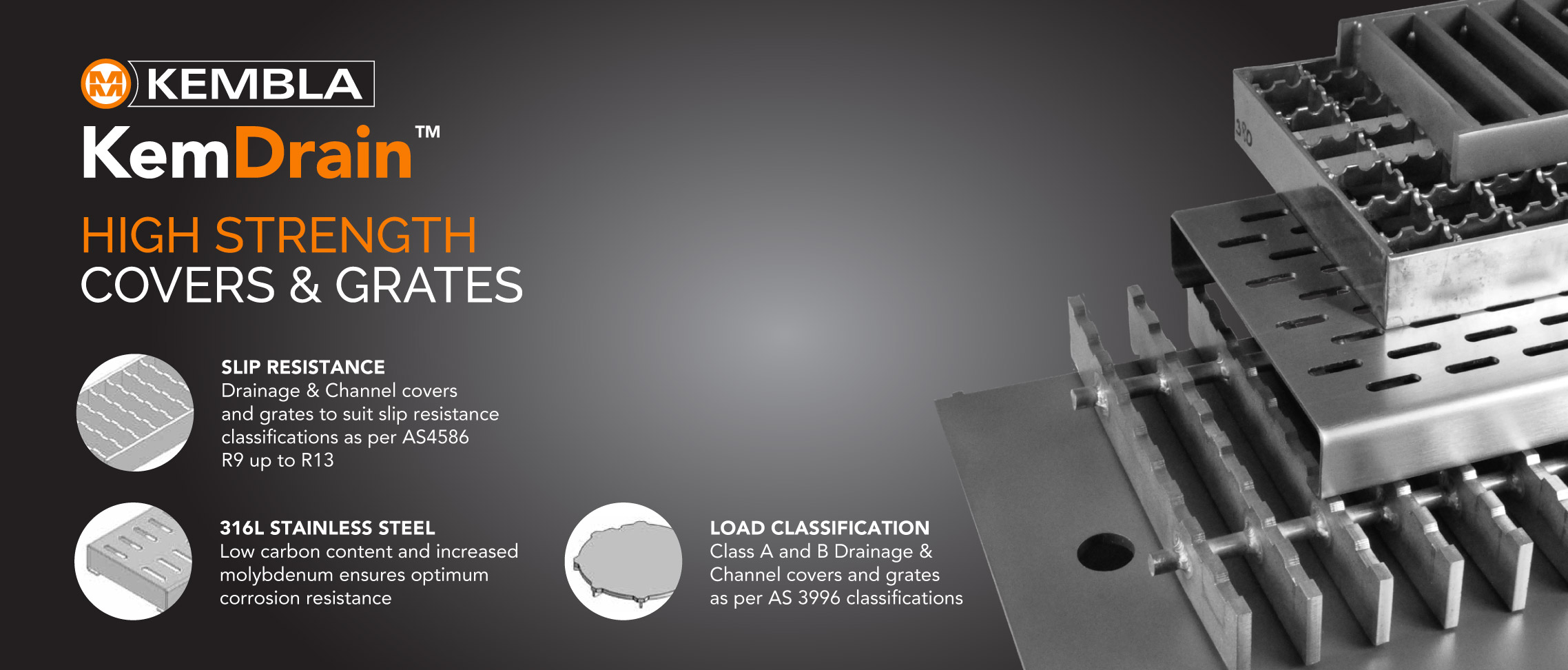

GRATE

Grates are available in various shapes, dimensions and finishes. The gratings are selected according to the loads and location of installation. Grate types include: anti-slip mesh, anti-slip ladder, plate and perforated sheet. Nominal 200 mm and 300 mm sizes are provided in square and round shapes.

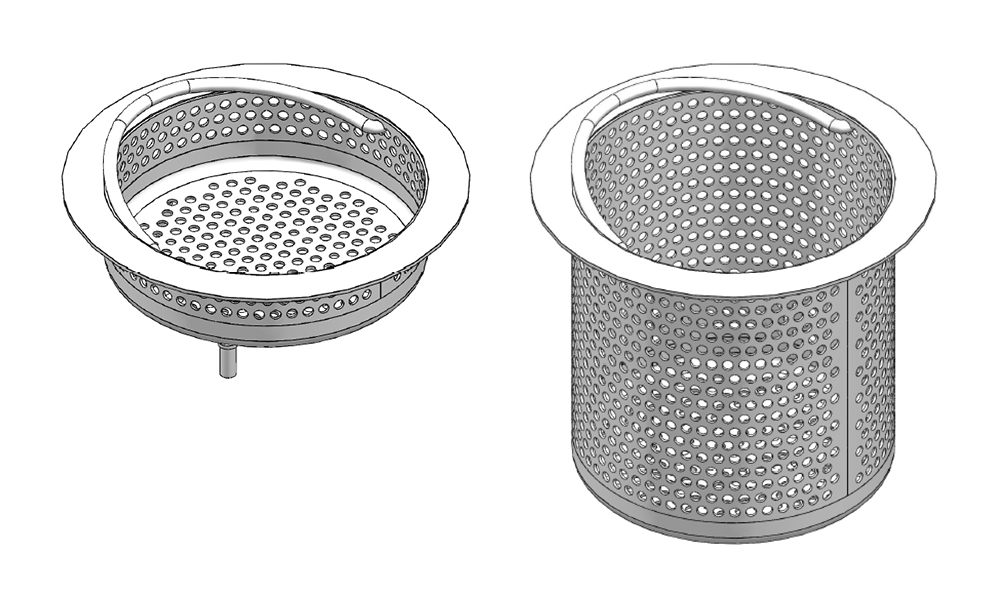

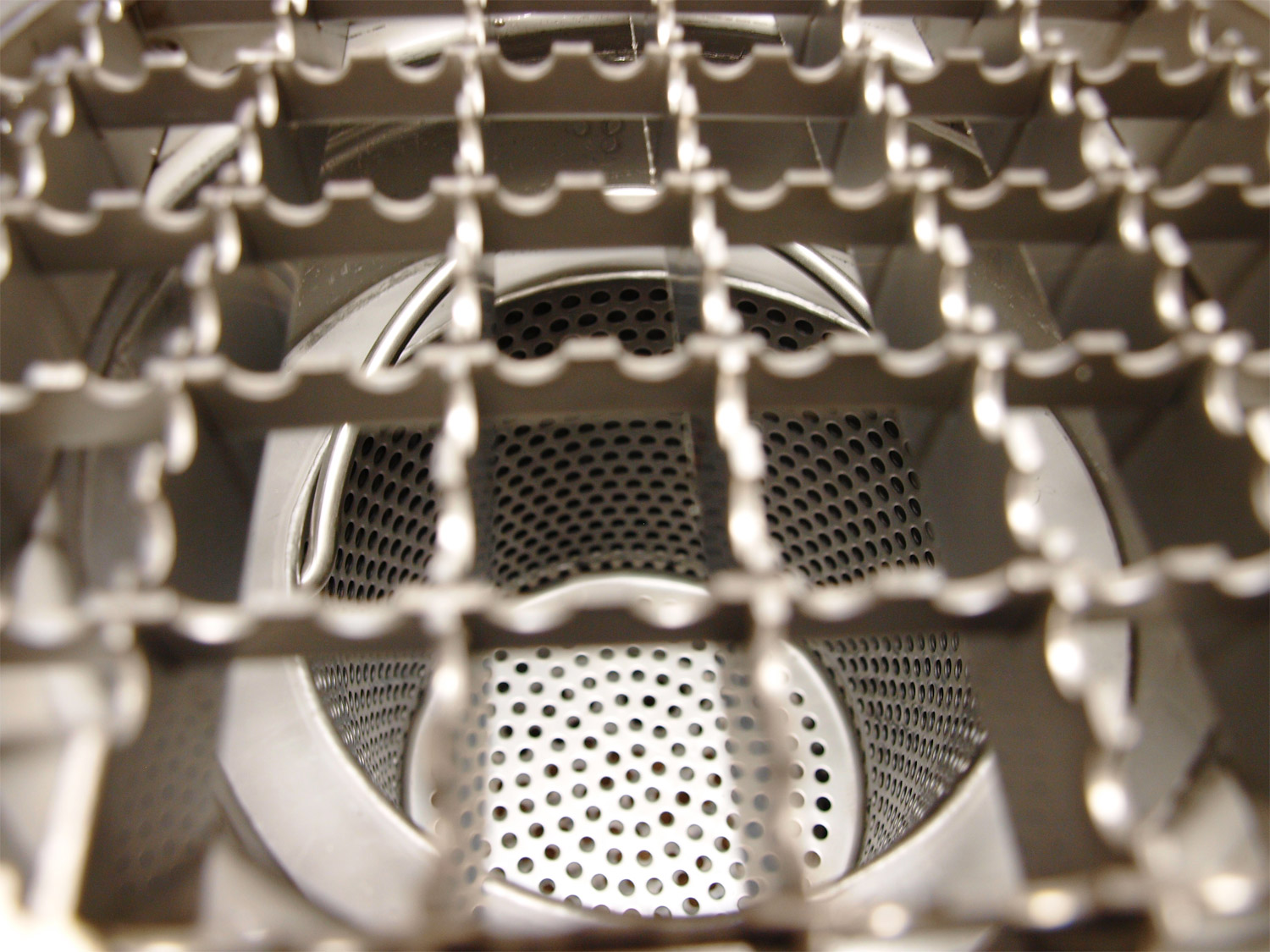

WASTE BASKETS

Waste baskets provide point source control of solids, preventing overloading sewers and waste water treatment plants. Use shallow version with internal water trap or deep version by itself. 4mm or 2mm perforations available.

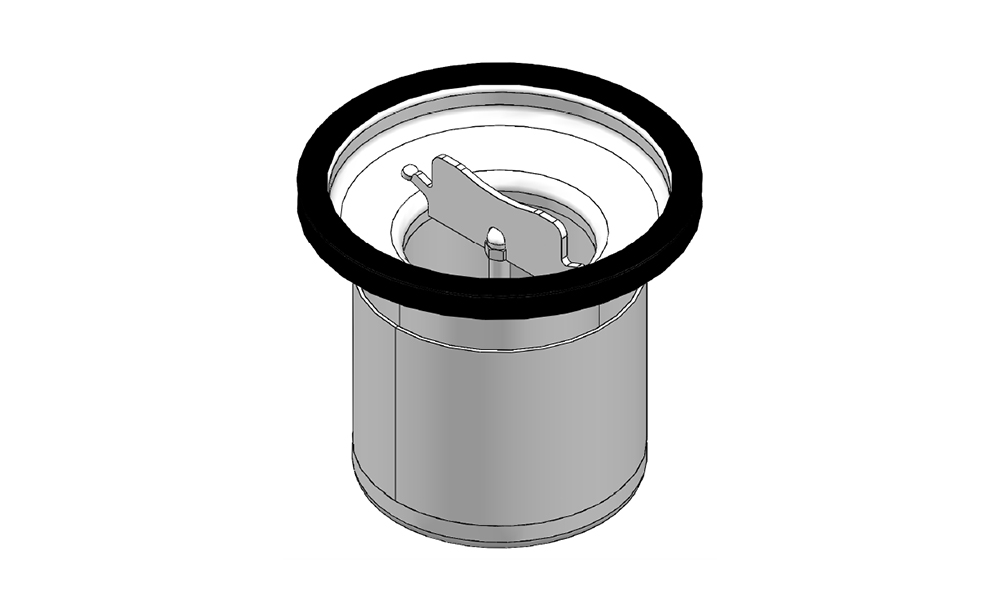

TRAP

KemDrain Traps are very functional and easy to maintain. Watermark approved 75 mm water trap depth prevents the discharge of foul odours from the sewer. Easy removal for access to the sewer and quick cleaning. Must be used with shallow waste basket.

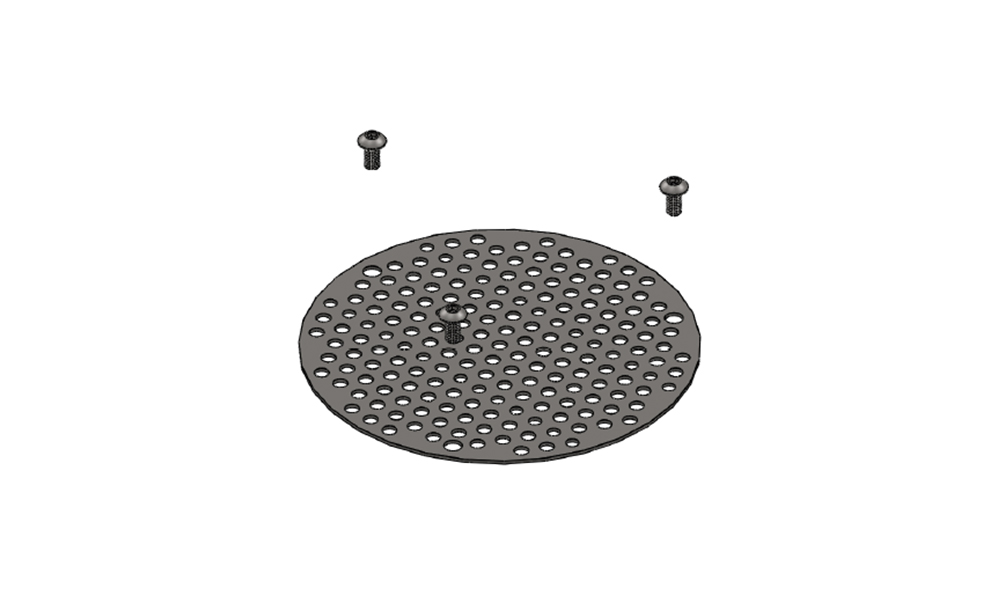

SECONDARY STRAINER

A secondary strainer reduces the risk of unintentional discharge of solids to the sewer during cleaning and maintenance. Welded locking ring and tamper resistant screws secure the secondary strainer in position. 4mm or 2mm perforations available.

BODY

It’s round shape and smooth radius bends are hygienic and efficient. Weld joints are ground to remove sharp edges to ensure safe installation and cleaning. Epoxy filled edges are standard on square top drains and solid stainless steel edges are standard on round top drains, ensuring easier installation and improved durability. Nominal 200 mm and 300 mm inlets in square and round shapes are provided.

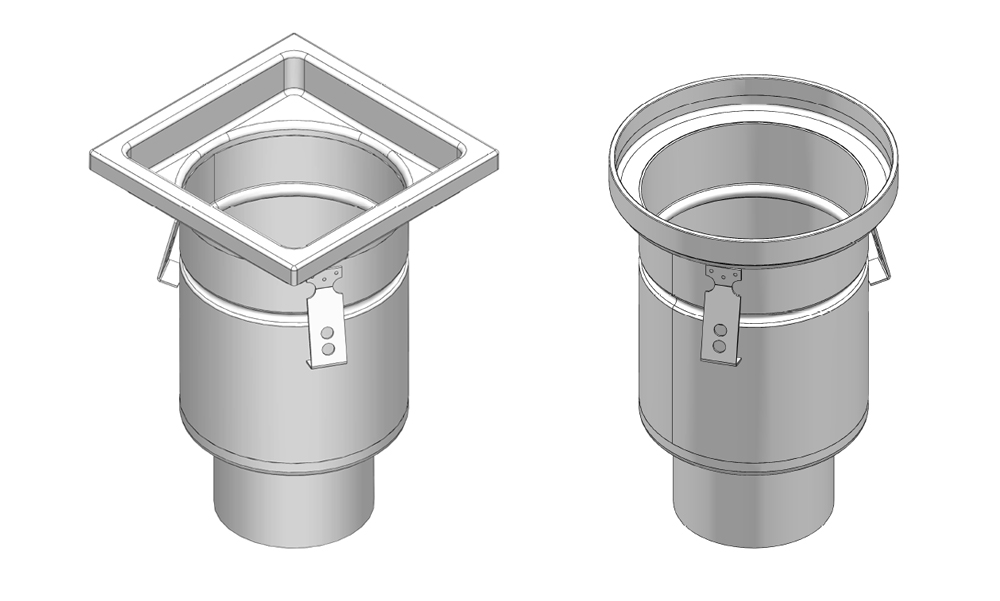

OUTLETS

DN100 with 110 mm outside diameter and DN150 with 160 mm outside diameter are available.

LOAD CLASSES FOR GRATINGS

The selection of grating and associated load class is the responsibility of the designer. When selecting the correct load class of grating, factors for consideration should include, but not limited to:

  • How will the grating be loaded? Will it have a point load or distributed load?
  • Will there be wheel loads, if yes what wheel type and size?
  • What will be the frequency of the load application, several times a day or even several hundred times a day?

Please note that the stated load classes are assumed for ideal load conditions (static). In reality the loads on gratings are much more complex (dynamic). If in doubt a higher load class should be considered.

LOAD CLASSIFICATION OF COVERS AND GRATES
(Partial Extract of Table 3.1 from AS 3996-2006 Access Covers and Grates)

ClassTypical UseNominal Wheel Loading kgServiceability Design Load kNUltimate Limit State Design Load kN
AAreas (including footways) accessible only to pedestrians and pedal cyclists and closed to other traffic (extra light duty)3306.710
BAreas (including footways and light tractor paths) accessible to vehicles (excluding commercial vehicles) or livestock (light duty)26705380
CMalls and areas open to slow moving commercial vehicles (medium duty)5000100150
DCarriageways of roads and areas open to commercial vehicles (heavy duty)8000140210

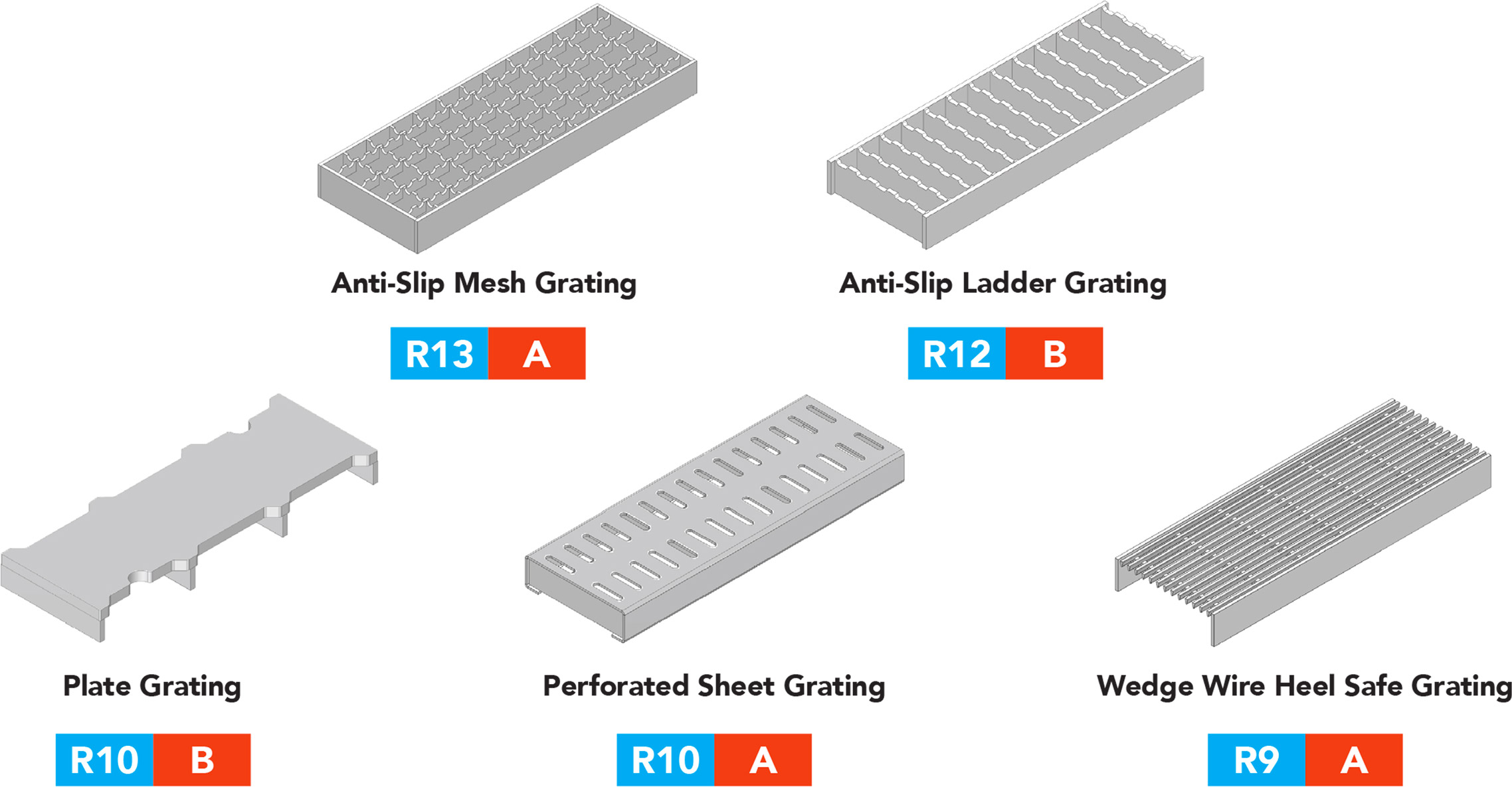

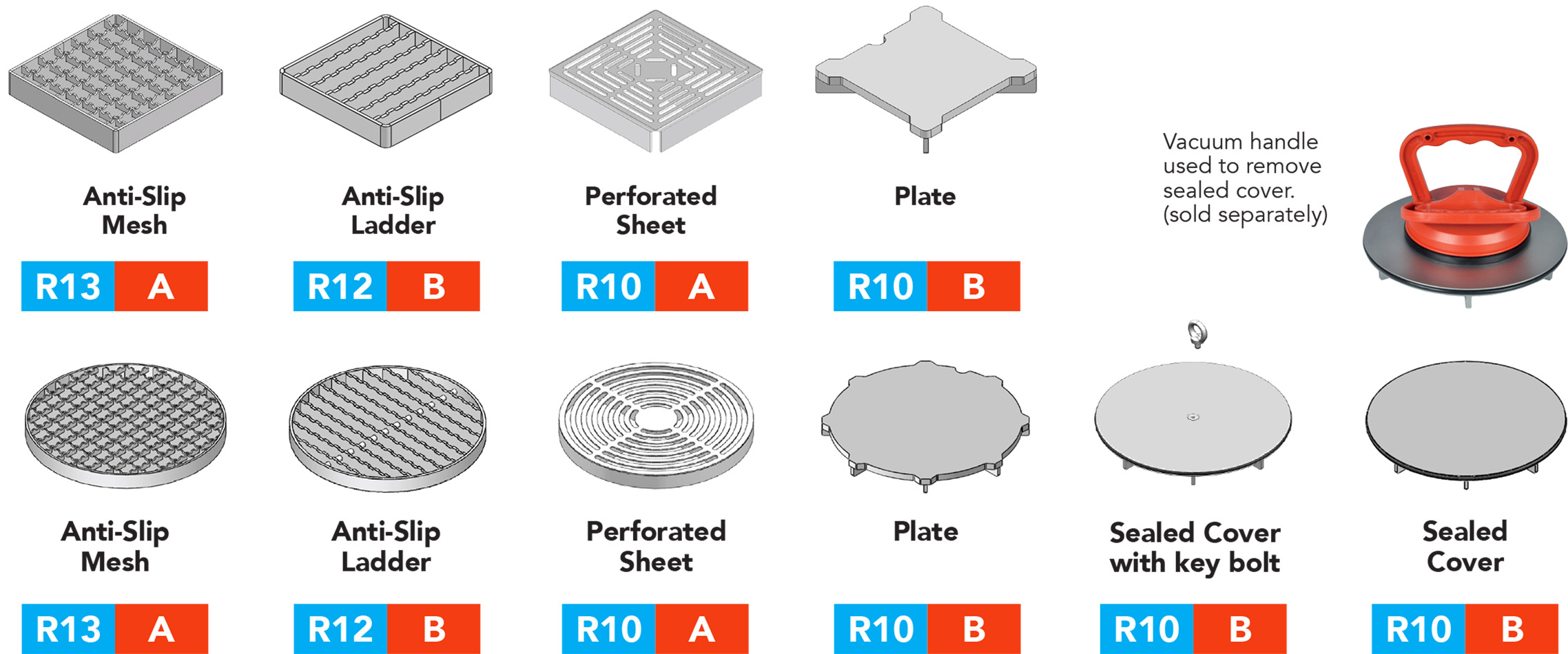

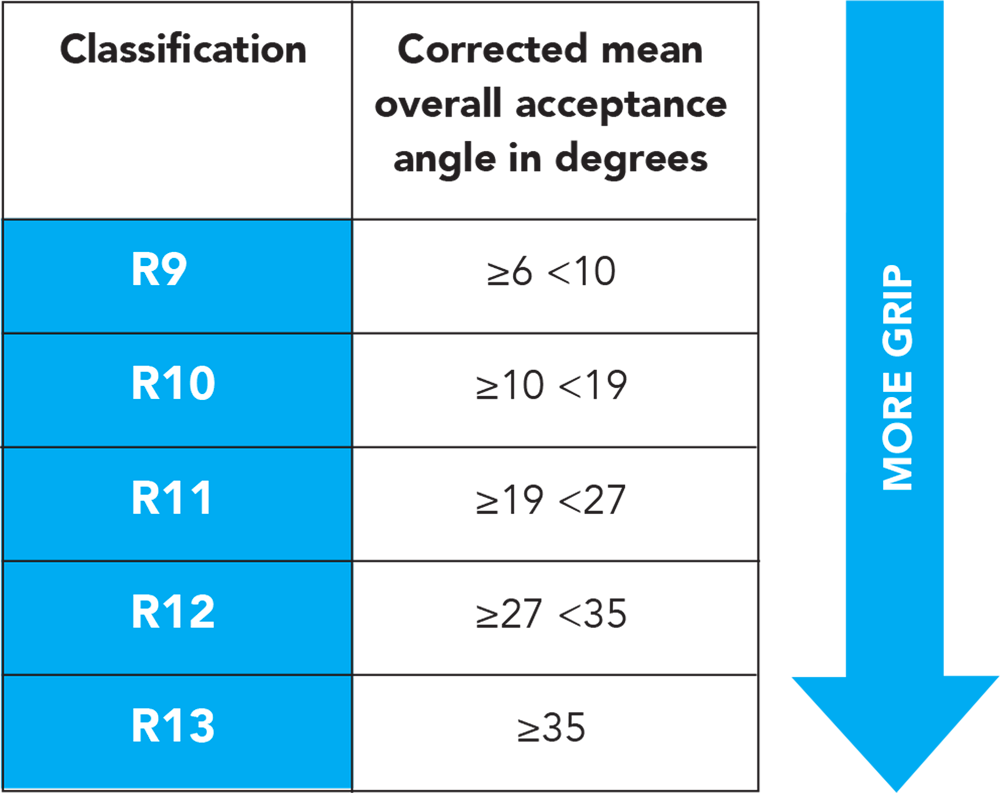

SLIP RESISTANCE FOR GRATINGS

The slip resistance of pedestrian surfaces can be measured using AS4586 and the oil-wet inclining platform test. Ratings are calculated according to the angle achieved in the test, with R9 classified surfaces achieving the lowest level of grip and R13 classified surfaces achieving the highest level of grip.

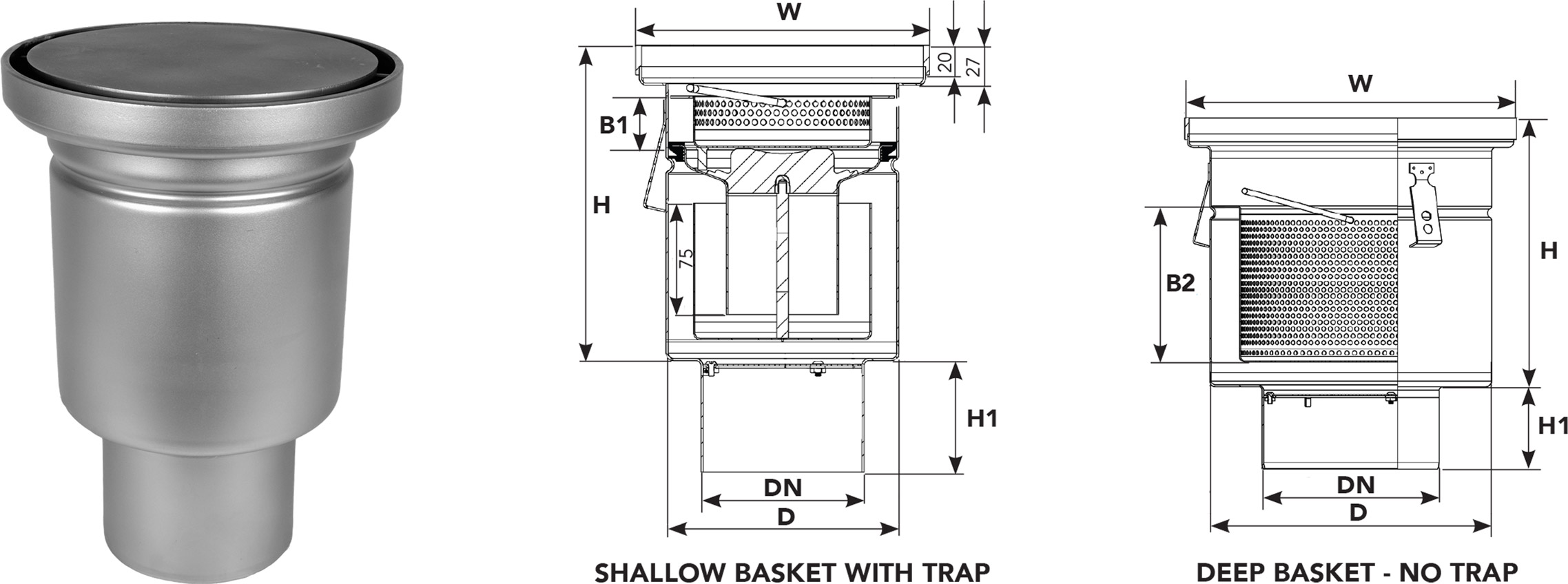

KemDrain Floor Drains – Product Tables

Item CodeW (mm)DN (mm)D (mm)Grate (mm)H (mm)H1 (mm)B1 (mm)B2 (mm)
X978001971101571632187535120
Item CodeAccessories
X97806SS316L 157 REMOVABLE TRAP - WATERMARK APPROVED 75MM SEAL FOR 157MM BODY
X97808SS316L 157 BASKET 4MM PERFORATIONS - FOR USE WITH REMOVABLE TRAP FOR 157MM BODY
X97809SS316L 157 DEEP BASKET 4MM PERFORATIONS - FOR USE WITHOUT TRAP FOR 157MM BODY
X97812SS316L 110V SECONDARY STRAINER 4MM PERFORATION - FOR 110MM OUTLET
X97855SS316L 157 BASKET 2MM PERFORATIONS - FOR USE WITH REMOVABLE TRAP FOR 157MM BODY
X97856SS316L 157 DEEP BASKET 2MM PERFORATIONS - FOR USE WITHOUT TRAP FOR 157MM BODY
X97859SS316L 110V SECONDARY STRAINER 2MM PERFORATIONS - FOR 110MM OUTLET
X97827SS316L W200 GRATE PERFORATED SHEET R10 A
X97825SS316L W200 GRATE ANTI- SLIP MESH R13 A
X97847SS316L W200 GRATE ANTI- SLIP LADDER R12 B
X97828SS316L W200 GRATE PLATE R10 B

Item CodeW (mm)DN (mm)D (mm)Grate (mm)H (mm)H1 (mm)B1 (mm)B2 (mm)
X978013001102552652447535135
X978023001602552652447535135
Item CodeAccessories
X97807SS316L 255 REMOVABLE TRAP - WATERMARK APPROVED 75MM SEAL FOR 255MM BODY
X97810SS316L 255 BASKET 4MM PERFORATIONS - FOR USE WITH REMOVABLE TRAP FOR 255MM BODY
X97811SS316L 255 DEEP BASKET 4MM PERFORATIONS - FOR USE WITHOUT TRAP FOR 255MM BODY
X97812SS316L 110V SECONDARY STRAINER 4MM PERFORATION - FOR 110MM OUTLET
X97813SS316L 160V SECONDARY STRAINER 4MM PERFORATION - FOR 160MM OUTLET
X97857SS316L 255 BASKET 2MM PERFORATIONS - FOR USE WITH REMOVABLE TRAP FOR 255MM BODY
X97858SS316L 255 DEEP BASKET 2MM PERFORATIONS - FOR USE WITHOUT TRAP FOR 255MM BODY
X97859SS316L 110V SECONDARY STRAINER 2MM PERFORATIONS - FOR 110MM OUTLET
X97860SS316L 160V SECONDARY STRAINER 2MM PERFORATIONS - FOR 160MM OUTLET
X97831SS316L W300 GRATE PERFORATED SHEET R10 A
X97829SS316L W300 GRATE ANTI- SLIP MESH R13 A
X97849SS316L W300 GRATE ANTI- SLIP LADDER R12 B
X97832SS316L W300 GRATE PLATE R10 B

Item CodeW (mm)DN (mm)D (mm)Grate (mm)H (mm)H1 (mm)B1 (mm)B2 (mm)
X978031981101571882157535120
Item CodeAccessories
X97806SS316L 157 REMOVABLE TRAP - WATERMARK APPROVED 75MM SEAL FOR 157MM BODY
X97808SS316L 157 BASKET 4MM PERFORATIONS - FOR USE WITH REMOVABLE TRAP FOR 157MM BODY
X97809SS316L 157 DEEP BASKET 4MM PERFORATIONS - FOR USE WITHOUT TRAP FOR 157MM BODY
X97812SS316L 110V SECONDARY STRAINER 4MM PERFORATION - FOR 110MM OUTLET
X97855SS316L 157 BASKET 2MM PERFORATIONS - FOR USE WITH REMOVABLE TRAP FOR 157MM BODY
X97856SS316L 157 DEEP BASKET 2MM PERFORATIONS - FOR USE WITHOUT TRAP FOR 157MM BODY
X97859SS316L 110V SECONDARY STRAINER 2MM PERFORATIONS - FOR 110MM OUTLET
X97833SS316L D200 GRATE PERFORATED SHEET R10 A
X97834SS316L D200 GRATE ANTI- SLIP MESH R13 A
X97851SS316L D200 GRATE ANTI- SLIP LADDER R12 B
X97836SS316L D200 GRATE SOLID PLATE R10 B
X97837SS316L D200 GRATE SEALED COVER R10 B (REQUIRES VACUUM HANDLE)
X97838SS316L D200 GRATE SEALED COVER R10 B WITH KEY BOLT
X97961VACCUM HANDLE - LIFTING DEVICE FOR SEALED COVER

Item CodeW (mm)DN (mm)D (mm)Grate (mm)H (mm)H1 (mm)B1 (mm)B2 (mm)
X978043001102552902397535135
X978053001602552902397535135
Item CodeAccessories
X97807SS316L 255 REMOVABLE TRAP - WATERMARK APPROVED 75MM SEAL FOR 255MM BODY
X97810SS316L 255 BASKET 4MM PERFORATIONS - FOR USE WITH REMOVABLE TRAP FOR 255MM BODY
X97811SS316L 255 DEEP BASKET 4MM PERFORATIONS - FOR USE WITHOUT TRAP FOR 255MM BODY
X97812SS316L 110V SECONDARY STRAINER 4MM PERFORATION - FOR 110MM OUTLET
X97813SS316L 160V SECONDARY STRAINER 4MM PERFORATION - FOR 160MM OUTLET
X97857SS316L 255 BASKET 2MM PERFORATIONS - FOR USE WITH REMOVABLE TRAP FOR 255MM BODY
X97858SS316L 255 DEEP BASKET 2MM PERFORATIONS - FOR USE WITHOUT TRAP FOR 255MM BODY
X97859SS316L 110V SECONDARY STRAINER 2MM PERFORATIONS - FOR 110MM OUTLET
X97860SS316L 160V SECONDARY STRAINER 2MM PERFORATIONS - FOR 160MM OUTLET
X97839SS316L D300 GRATE PERFORATED SHEET R10 A
X97840SS316L D300 GRATE ANTI- SLIP MESH R13 A
X97853SS316L D300 GRATE ANTI- SLIP LADDER R12 B
X97842SS316L D300 GRATE SOLID PLATE R10 B
X97843SS316L D300 GRATE SEALED COVER R10 B (REQUIRES VACUUM HANDLE)
X97844SS316L D200 GRATE SEALED COVER R10 B WITH KEY BOLT
X97961VACCUM HANDLE - LIFTING DEVICE FOR SEALED COVER

Item CodeW (mm) DN (mm) H (mm)
X97819201160150
Item CodeAccessories
X97820SS316L 200 SMOOTH PLATE 8MM THICK FOR 160MM OUTLET INSPECTION POINT
X97821SS316L 200 ANTI-SLIP PLATE 8MM THICK FOR 160MM OUTLET INSPECTION POINT
X97822SS316L 200 EPDM GASKET FOR 160MM OUTLET INSPECTION POINT
X97823SS316L INSPECTION POINT SET OF LOCKING SCREWS (3 PCS)
X97824SS316L 157 INTERNAL PLUG FOR 160MM OUTLET INSPECTION POINT

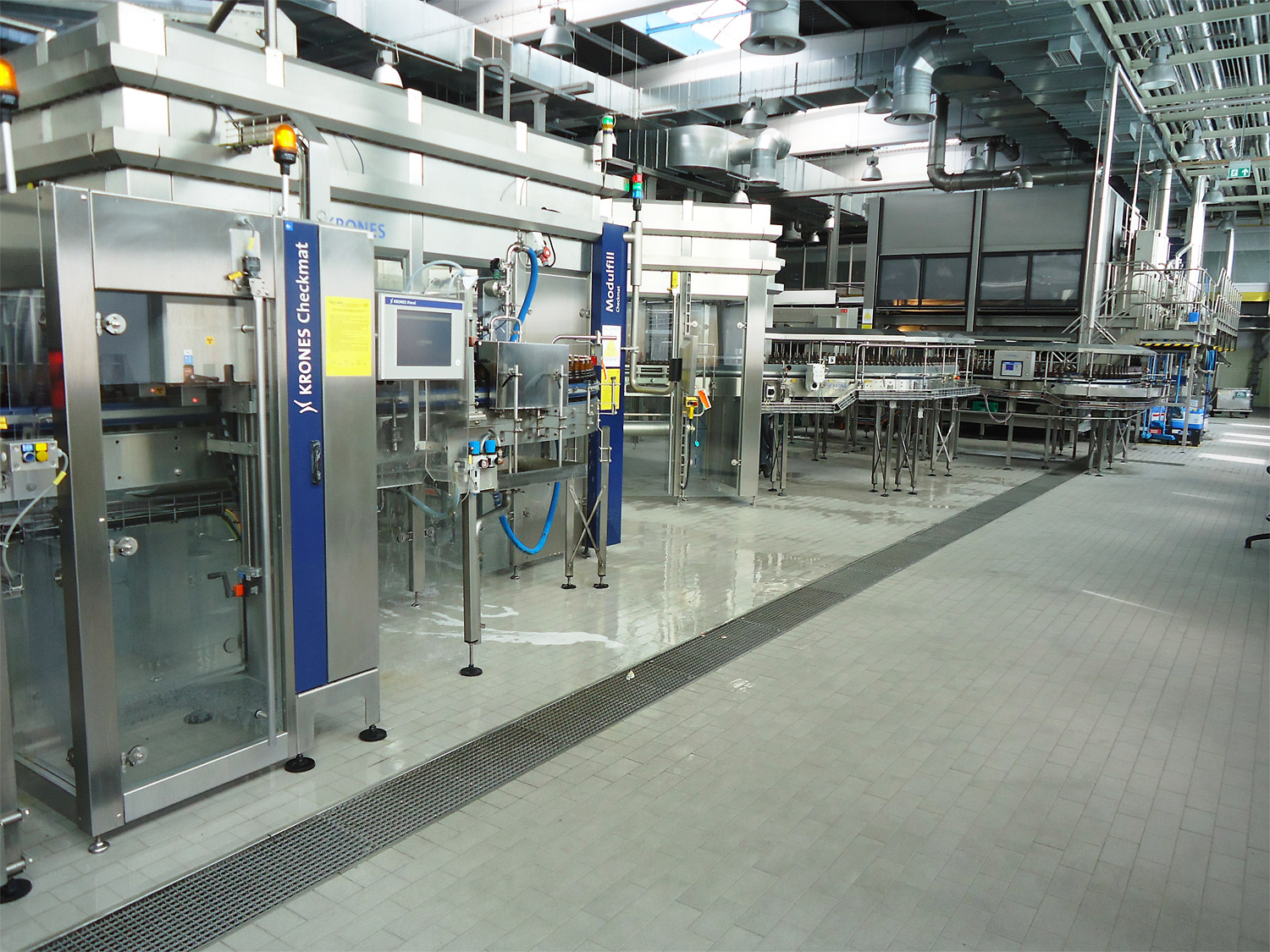

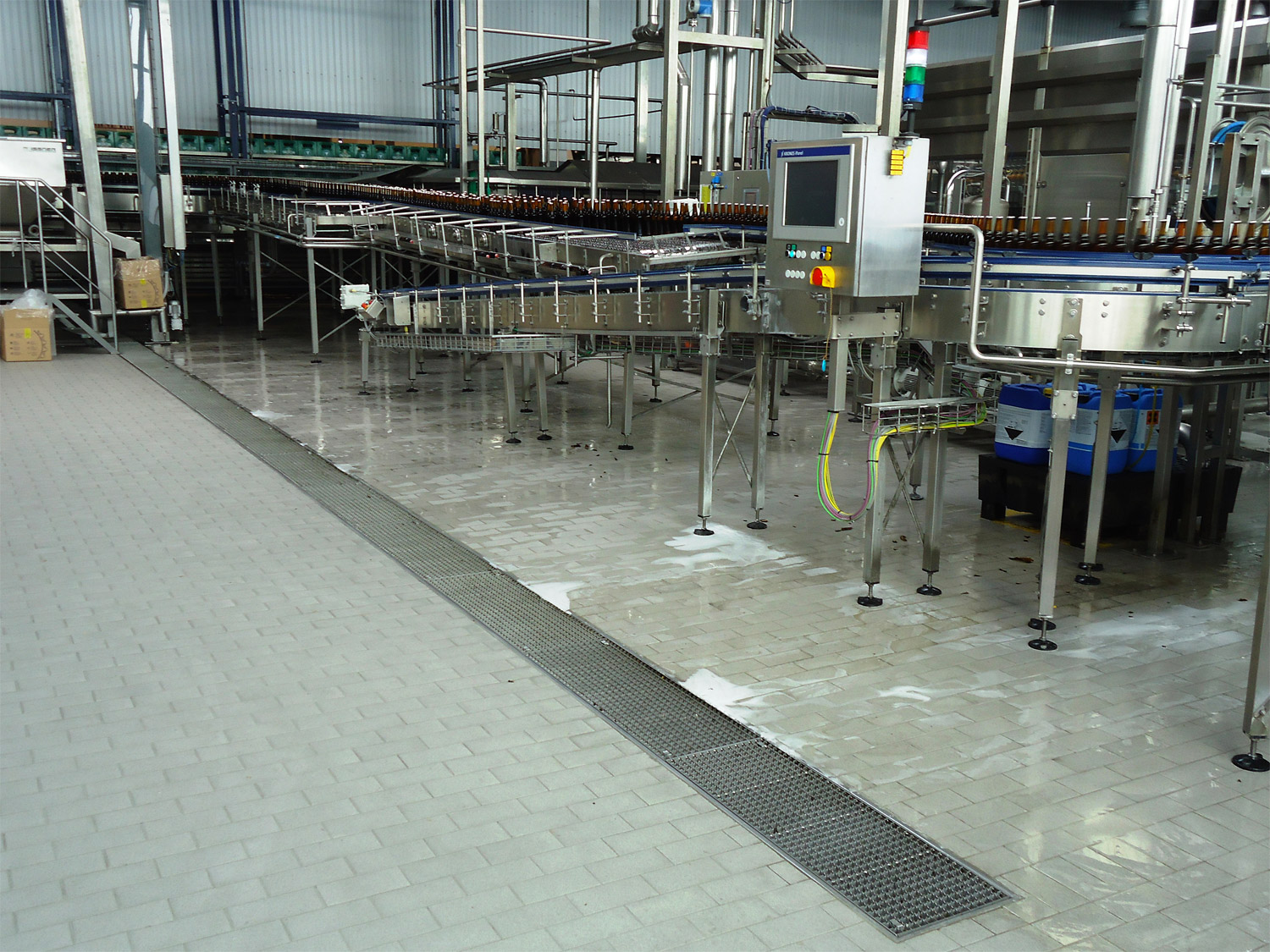

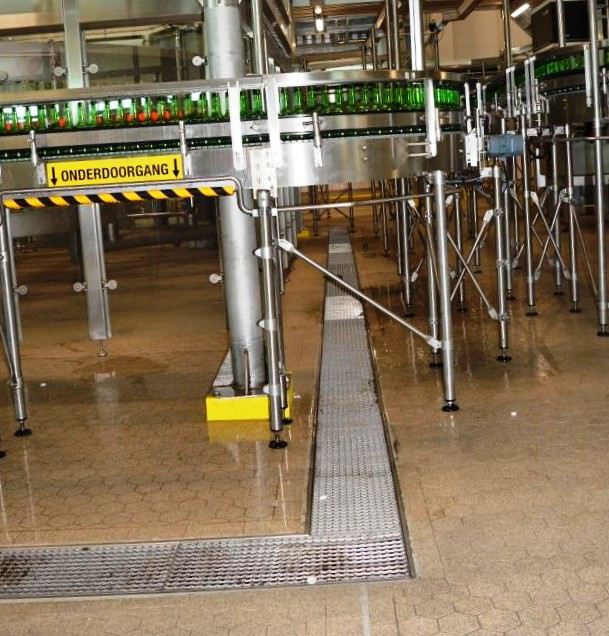

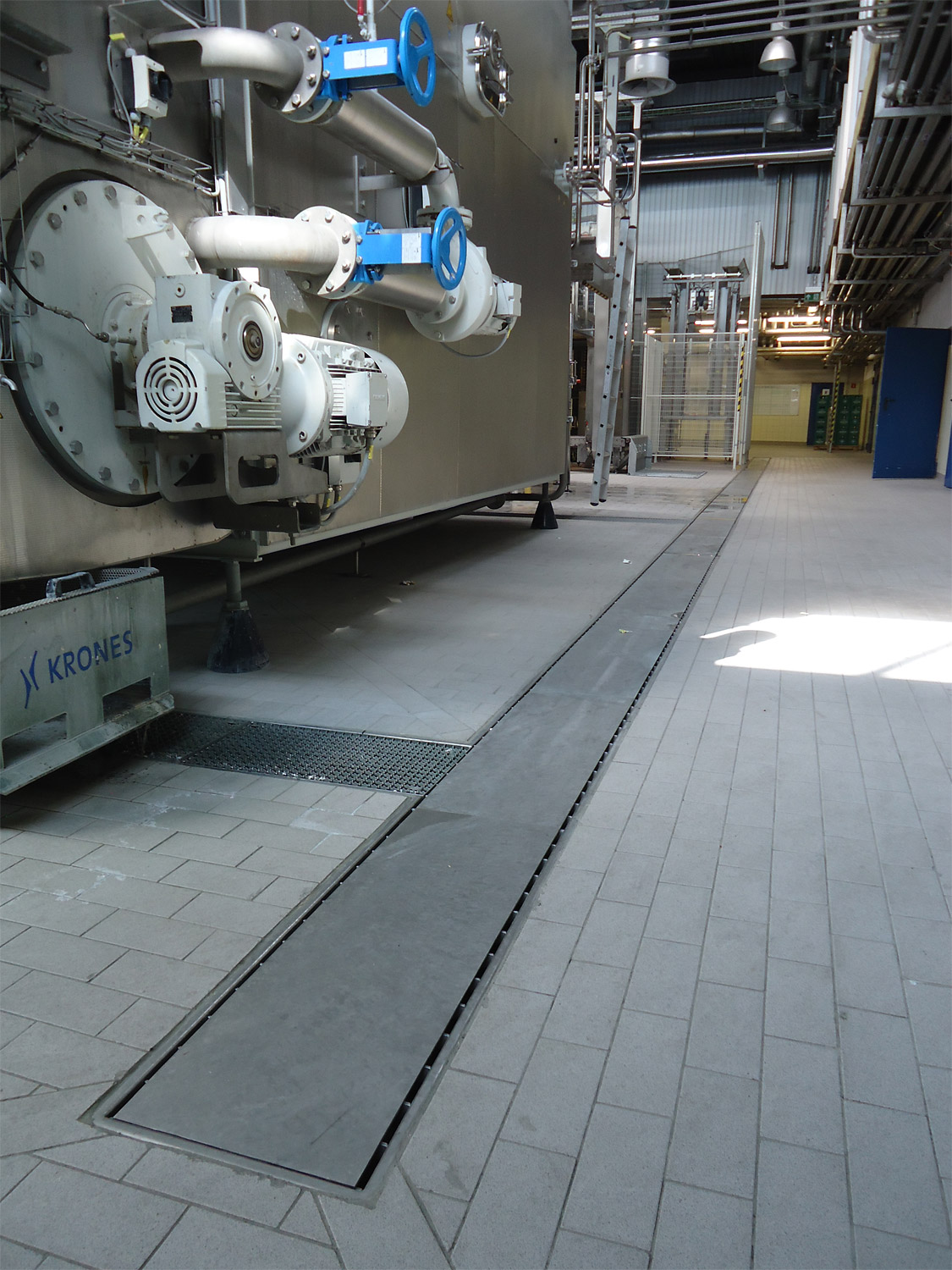

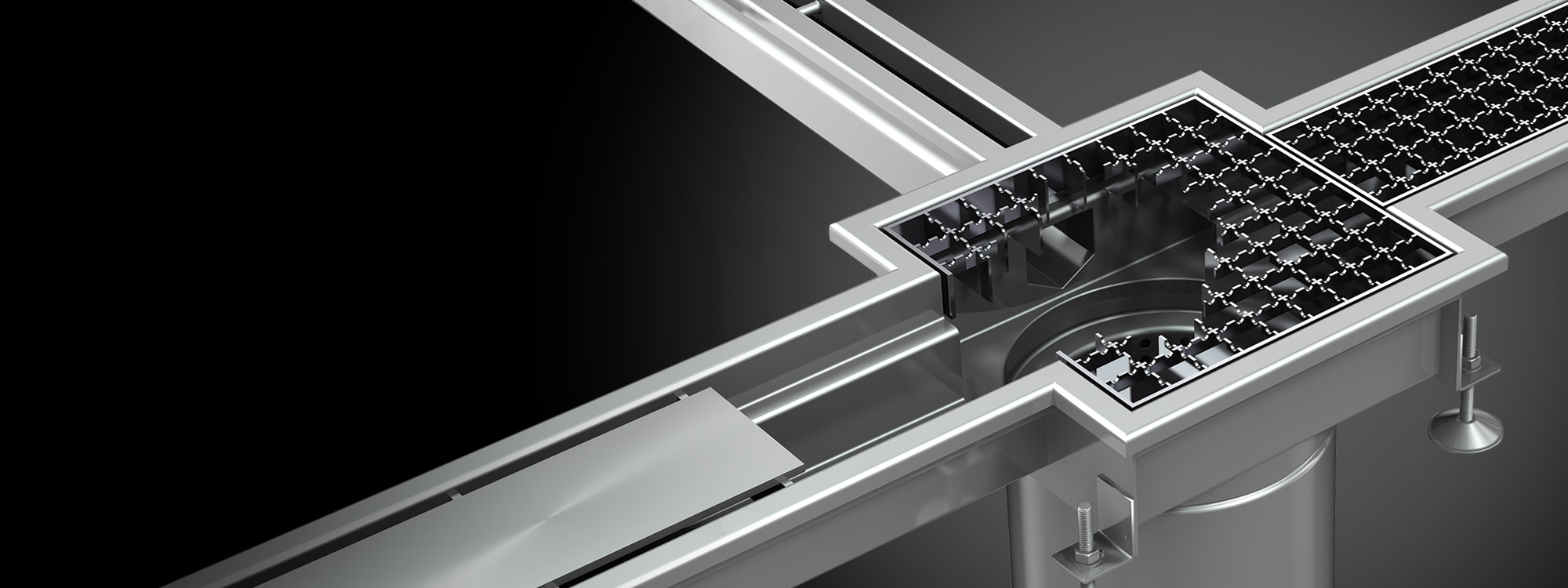

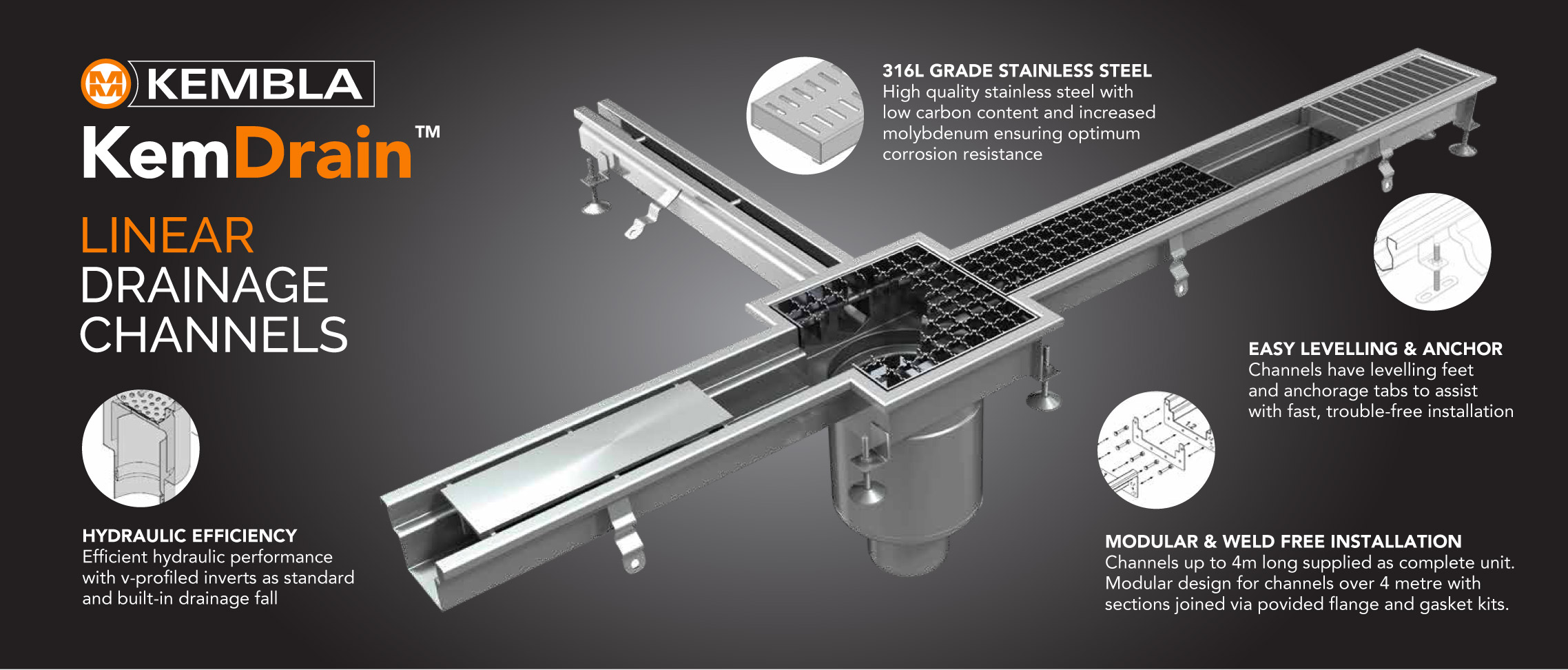

KemDrain 316L Stainless Linear Drainage Channels

Manufactured from the highest quality 316L Stainless steel, KemDrain linear drainage channels and slot channels provide a strong, durable, hydraulically efficient, hygienic weld-free solution for industrial drainage applications. Custom made and with a range of channel sizes, grate and outlet options available; Kemdrain provides a complete drainage system solution with no hidden extras and the simplest and fastest installation process.

With a fast and simple quote, design and approval process we deliver your KemDrain linear drainage channels within 3-4 weeks from sign off of designs. To request a quote for your next project, complete the KemDrain Quotation Request Form and send it to sales@kembla.com.au.

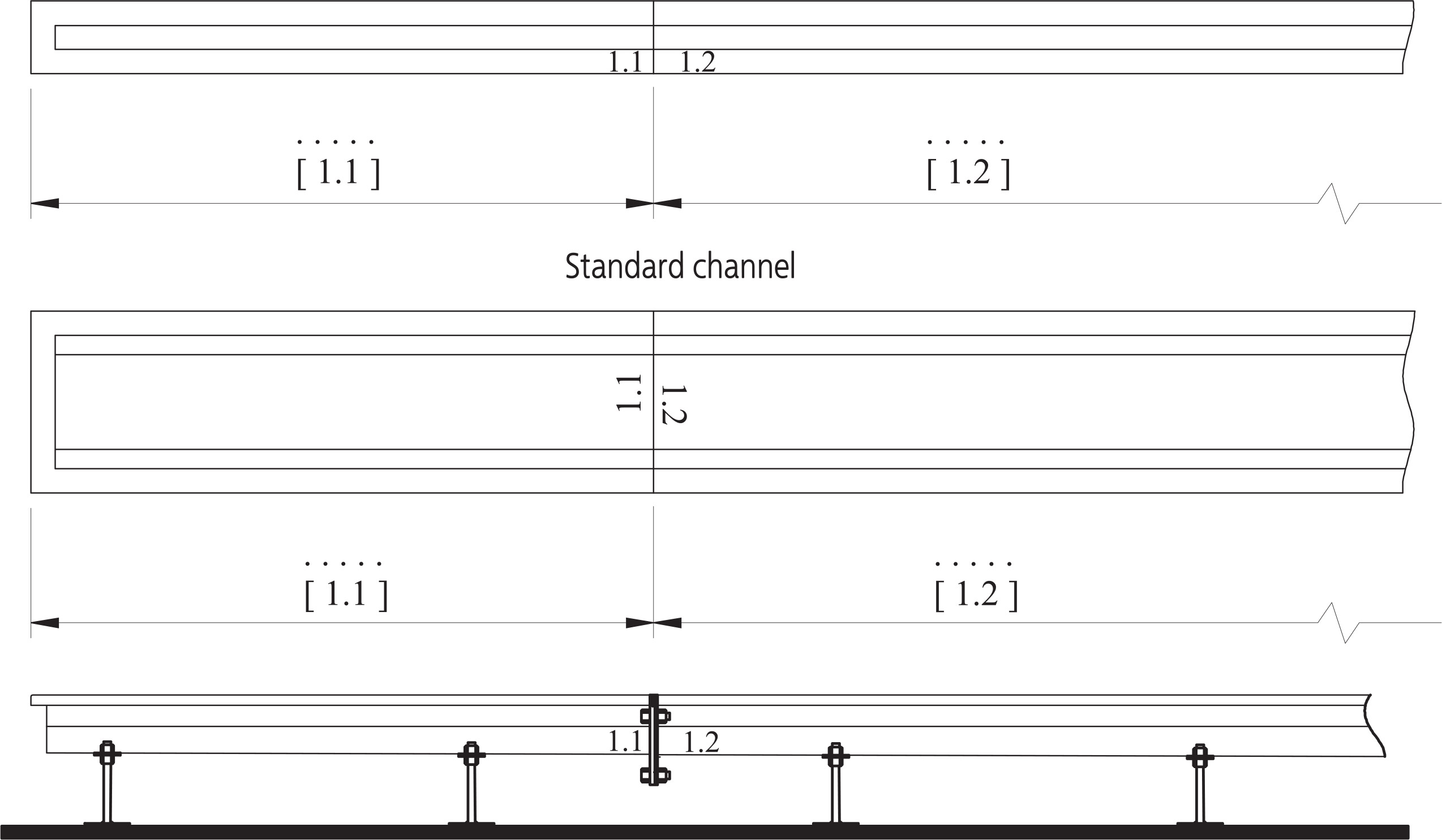

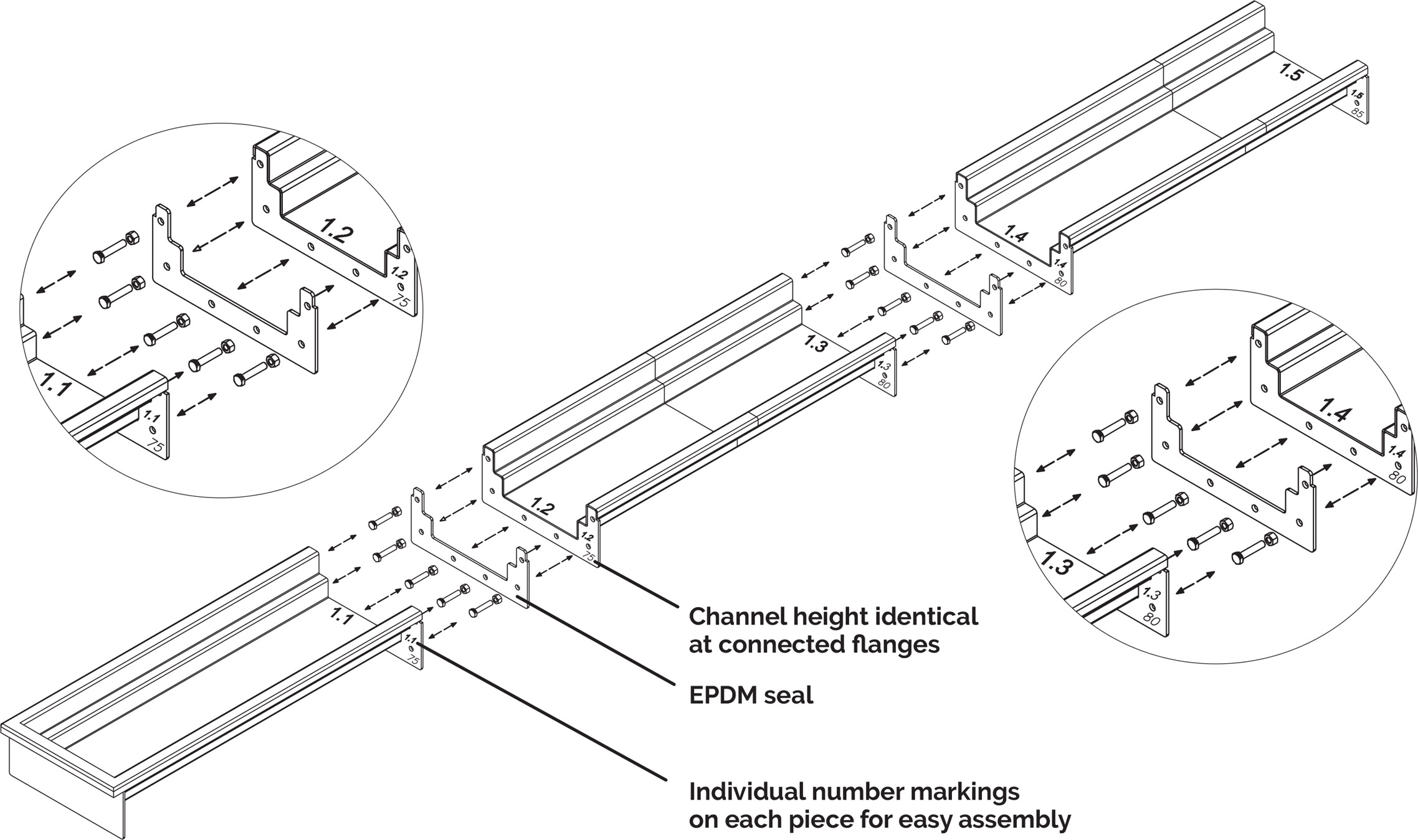

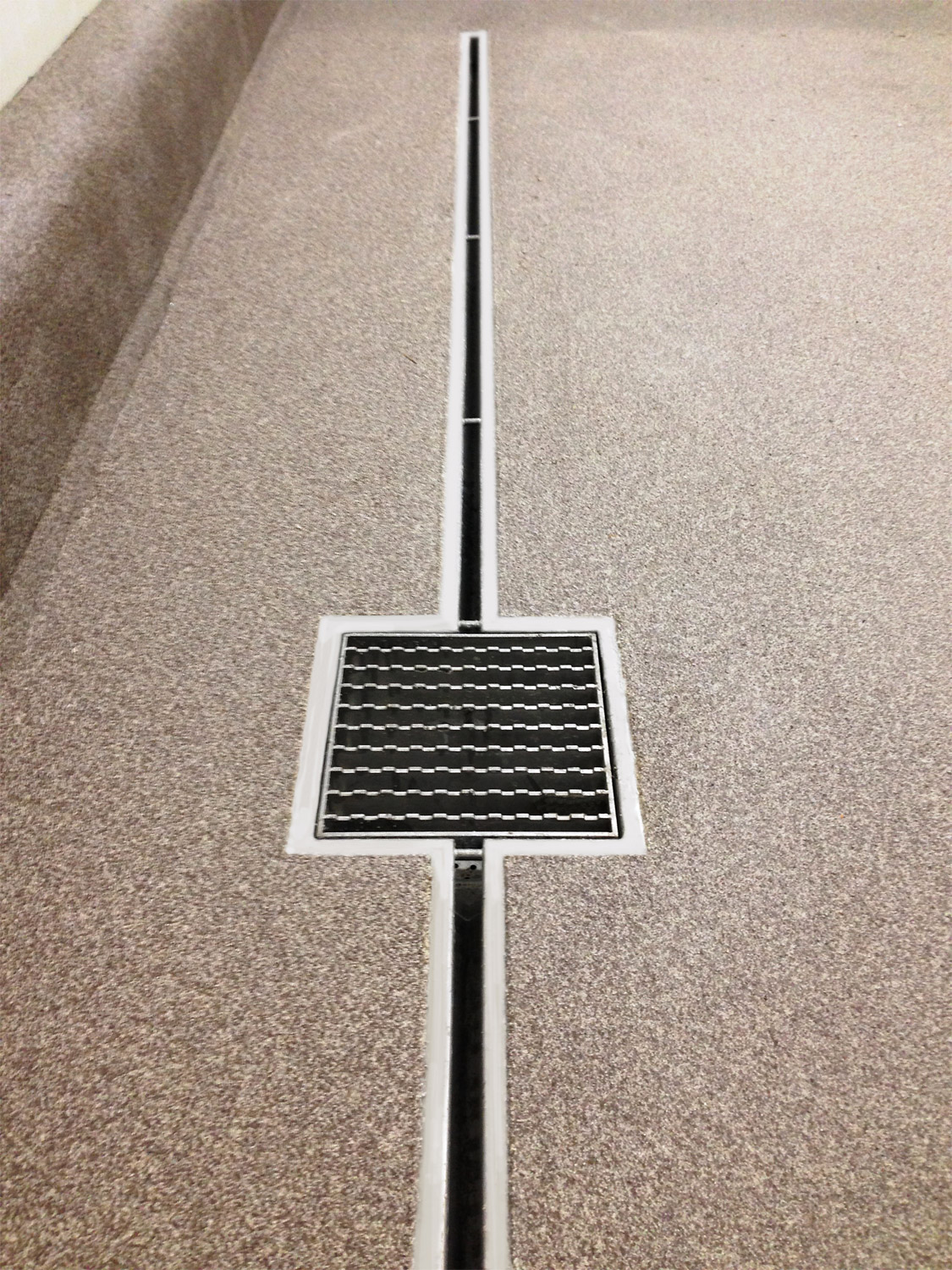

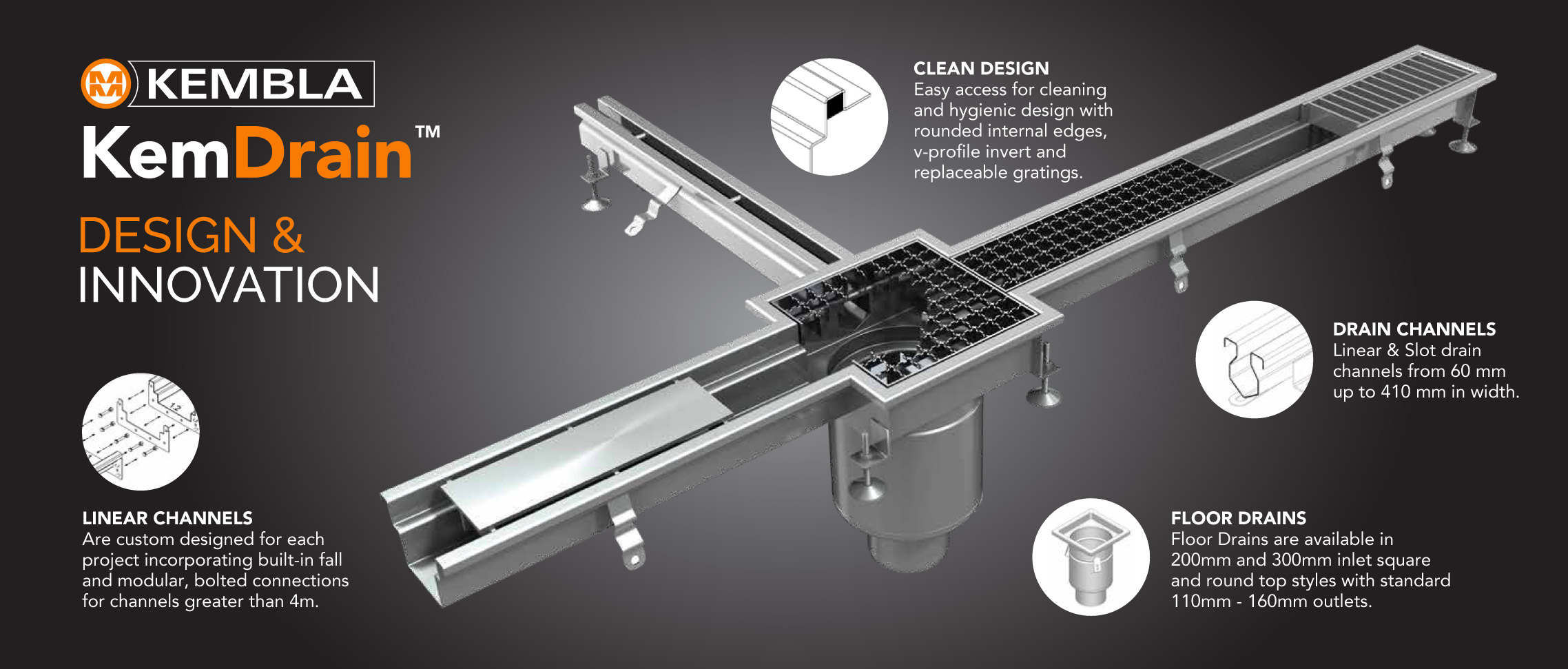

Typical lay out of the channel is shown in the figure below. The placement of floor drains and channel route depends on the flooring design and amount of water to be drained from the floor. For an effective and simple method for draining surfaces where high flow capacity is not required (e.g. Condensate dripping from machinery or A/C systems, dairies, swimming pools); KemDrain C60 Slot channels are a perfect solution. Channel sizes range from 60mm up to 400mm wide.

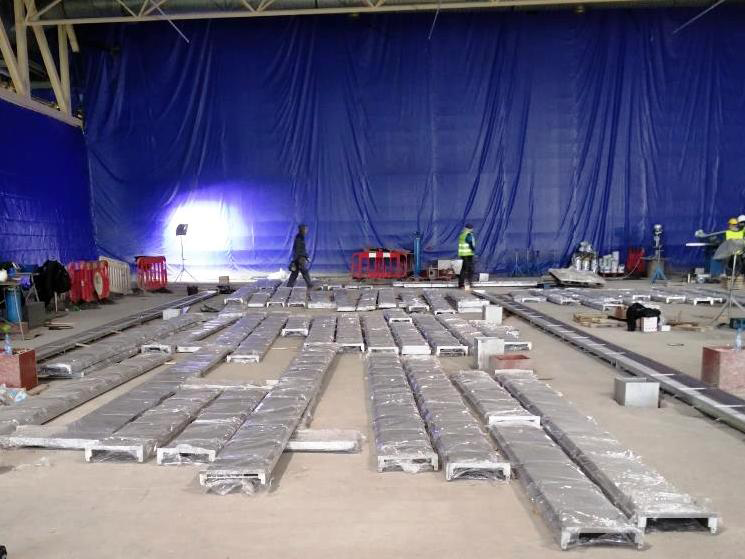

Channels are divided into sections that can very in length, as a standard their length does not exceed 4 metres per section. The standard combined length of a channel with a single outlet should not exceed 10 metres. The modular design for channel lengths greater than 4 metres, with sections joined via provided flange and gasket kits and all channel components numbered to allow for easy assembly. For more information regarding installation please refer to the KemDrain Design & Installation Guide.

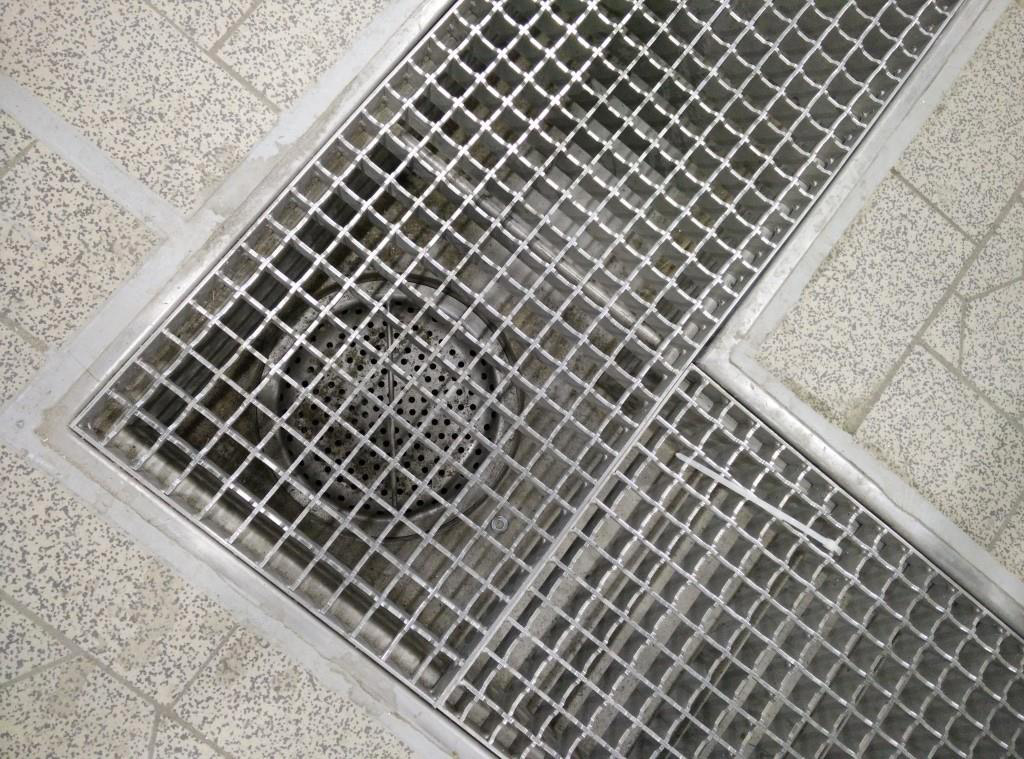

KemDrain channel outlets are available in a number of sizes and options with outlet diameters of 110mm or 160mm and body diameters of 157mm or 255mm (see product tables for more information). The quantity and size of outlets will depends on factors including catchment area, channel size, flow rates and cleaning frequency where baskets or traps are incorporated.
An outlet extension box is required when outlet bodies do not fit within the channel section, common for channels up to 250mm width or 300mm wide channels with 255mm bodies.

  • Food and beverage processing
  • Abattoirs
  • Laboratories
  • Wineries
  • Breweries
  • Plant rooms
  • Clean rooms
  • Laundrettes
  • Hospitals
  • Commercial kitchens
  • Manufactured using high quality 316L grade stainless steel
  • Low carbon content of 316L stainless steel eliminates carbide precipitation at welds during manufacture, improving corrosion resistance
  • Increased molybdenum contact increases corrosion resistance
  • All KemDrain Stainless products are thoroughly cleaned, pickled and passivated to ensure optimum corrosion resistance
  • Fast and easy installation – no on-site welding with channels up to 4 metres long supplied as a complete unit. Channels over 4 metres in length are a modular design and sections are joined via provided flange and gasket kits
  • Hygienic design features and hydraulically efficient
  • Strong and durable TIG welded 316L stainless steel, 2mm thick for grated channels and 1.5mm for slot channels
  • Each channel has levelling feet and anchorage tabs to assist with fast, trouble free-installation
  • Epoxy filled edges are standard, making installation easier and the edges more durable.
  • Range of grates to suit various traffic conditions and loads, including anti-slip and heel-safe surfaces
  • Slot drain and grated channels from 110mm up to 410mm grate widths
  • Easy access for cleaning and hygienic design with rounded internal edges, v-profile invert, replaceable gratings, integrated strainer baskets and water traps available for the floor drain outlet
  • Inspection opening to the sewer is located in the outlet
  • Fast and simple quote, design and approval process

LOAD CLASSES FOR GRATINGS

The selection of grating and associated load class is the responsibility of the designer. When selecting the correct load class of grating, factors for consideration should include, but not limited to:

  • How will the grating be loaded? Will it have a point load or distributed load?
  • Will there be wheel loads, if yes what wheel type and size?
  • What will be the frequency of the load application, several times a day or even several hundred times a day?

Please note that the stated load classes are assumed for ideal load conditions (static). In reality the loads on gratings are much more complex (dynamic). If in doubt a higher load class should be considered.

LOAD CLASSIFICATION OF COVERS AND GRATES
(Partial Extract of Table 3.1 from AS 3996-2006 Access Covers and Grates)

ClassTypical UseNominal Wheel Loading kgServiceability Design Load kNUltimate Limit State Design Load kN
AAreas (including footways) accessible only to pedestrians and pedal cyclists and closed to other traffic (extra light duty)3306.710
BAreas (including footways and light tractor paths) accessible to vehicles (excluding commercial vehicles) or livestock (light duty)26705380
CMalls and areas open to slow moving commercial vehicles (medium duty)5000100150
DCarriageways of roads and areas open to commercial vehicles (heavy duty)8000140210

SLIP RESISTANCE FOR GRATINGS

The slip resistance of pedestrian surfaces can be measured using AS4586 and the oil-wet inclining platform test. Ratings are calculated according to the angle achieved in the test, with R9 classified surfaces achieving the lowest level of grip and R13 classified surfaces achieving the highest level of grip.

MM Kembla warrants that if any installation using KemDrain becomes defective or fails and MM Kembla is notified of the details and is satisfied that the defect or failure was a result of a manufacturing defect and not the result of faulty specification, installation or incompatible environment, MM Kembla will replace or repair the defective goods and make good the installation.
